Threaded Pipe Fittings
Forged Pipe Fittings

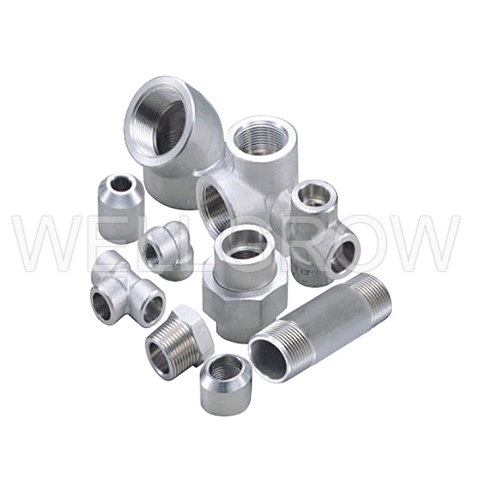

The Threaded Pipe Fitting is a type of forged pipe fitting designed to be screwed onto the ends of pipes or other fittings, creating a secure and leak-proof connection in high-pressure piping systems.
Our threaded pipe fittings are available in various types, such as threaded 90 degree elbows, couplings, nipples, unions, and branch outlets. These fittings are made from stainless steel, carbon steel, alloy steel, and super duplex stainless steel. They are available in different pressure ratings, including 2000lbs, 3000lbs, and 6000lbs. The common threaded types include NPT, BSPT, and BSPP.
Material：
ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)
ASTM A105, A350 LF2, A106 Gr.B, A234 WPB, A312, A403
ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)
ASTM A105, A350 LF2, A106 Gr.B, A234 WPB, A312, A403
Dimension：ASME 16.11, MSS SP-79, 83, 95, 97 and BS3799
Pressure Rating：2000LBS, 3000LBS, 6000LBS
Size：NPS 1/8” ~ 4” (DN6 ~ DN100)
Available Parts：
