Stainless Butt Weld Fittings
Butt Weld Fittings

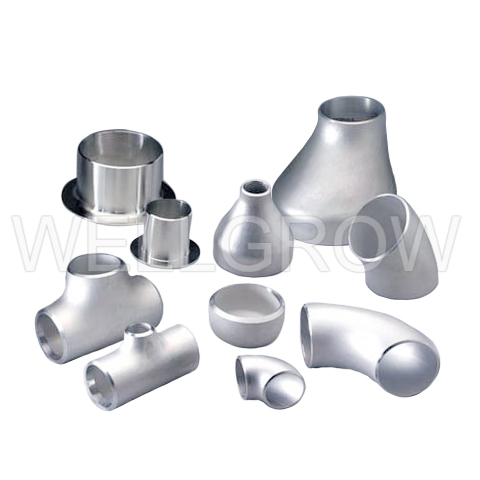

We offer a comprehensive range of Stainless Butt Weld Fittings in compliance with ASME B16.9, MSS SP-43, JIS B2312, and JIS B2313 standards. Our products include 90-degree and 45-degree elbows, equal tees, concentric and eccentric reducers, stub ends, and more. These fittings are made from stainless steel pipes, and are available in welded and seamless types. The materials offered include stainless steel 304/304L and 316/316L, in accordance with ASTM A403, providing excellent corrosion resistance and high strength.
Our fittings comply with the NACE MR0175 standard for suitable use in sour gas environments. Additionally, X-ray testing for welded butt weld fittings is available upon request.
Material：
ASTM/ASME A/SA403 WP-S, WP-W, WP-WX, 304/304L, 316/316L, A/SA234 WPB
ASTM/ASME A/SA403 WP-S, WP-W, WP-WX, 304/304L, 316/316L, A/SA234 WPB
Dimension：
ANSI B16.9, ANSI B16.28, MSS SP-43, JIS B2312, JIS B2313
ANSI B16.9, ANSI B16.28, MSS SP-43, JIS B2312, JIS B2313
Thickness：
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS
Size：
1/2" ~ 80"
1/2" ~ 80"
