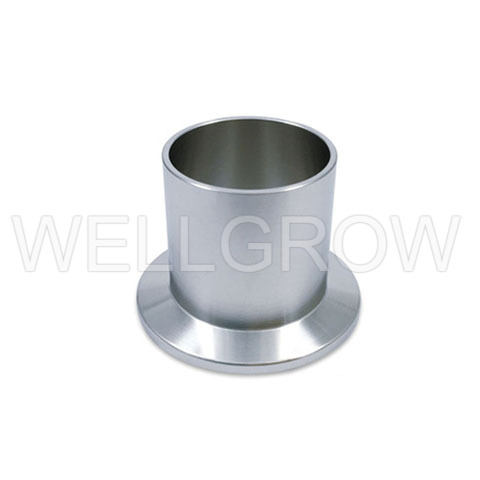

The KF Nipple is a type of vacuum fitting consisting of KF flanges welded onto both sides of a tube, while a KF Half Nipple consists of a KF flange welded onto one side of a tube. They are used to connect vacuum tubing or equipment.
We offer several short and long half nipples available in USA, Europe, and Japan standards for different tube outside diameters. They are made of stainless steel 304 and 316L, providing excellent corrosion resistance and durability.
Model No. | A | B | C |
---|---|---|---|
NI-16 | 30 | 80 | 19.05 |
NI-25 | 40 | 100 | 25.40 |
NI-40 | 55 | 130 | 38.10 |
NI-50 | 75 | 140 | 50.80 |
Model No. | A | B | C |
---|---|---|---|
SWFA-10 | 30 | 12.7 | 12.70 |
SWFA-16 | 30 | 12.7 | 19.05 |
SWFA-25 | 40 | 12.7 | 26.40 |
SWFA-40 | 55 | 19.1 | 38.10 |
SWFA-50 | 75 | 19.1 | 50.80 |
Model No. | A | B | C |
---|---|---|---|
SWFE-10 | 30 | 20 | 14 |
SWFE-16 | 30 | 20 | 20 |
SWFE-25 | 40 | 20 | 28 |
SWFE-40 | 55 | 20 | 45 |
SWFE-50 | 75 | 20 | 57 |
F1
F2
Model No. | Type | A | B | C | D |
---|---|---|---|---|---|
SWFJ-25-27 | F1 | 40 | 20 | 27.2 | - |
SWFJ-40-42 | F1 | 55 | 20 | 42.7 | - |
SWFJ-50-60 | F1 | 75 | 20 | 60.5 | - |
SWFJ-25-34 | F2 | 40 | 20 | 34.0 | 32 |
SWFJ-40-48 | F2 | 55 | 20 | 48.6 | 45 |
Model No. | A | B | C |
---|---|---|---|
LWFA-10 | 30 | 40 | 12.70 |
LWFA-16 | 30 | 40 | 19.05 |
LWFA-25 | 40 | 40 | 25.40 |
LWFA-40 | 55 | 40 | 38.10 |
LWFA-50 | 75 | 40 | 50.80 |
F1
F2
Model No. | Type | A | B | C | D |
---|---|---|---|---|---|
LWFJ-25 | F1 | 40 | 50 | 34.0 | 32 |
LWFJ-40 | F1 | 55 | 50 | 48.6 | 45 |
LWFJ-50 | F2 | 75 | 50 | 60.5 | - |
