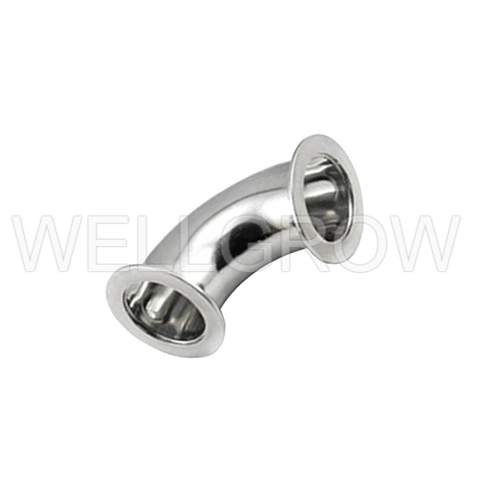

KF Fittings are the tube fittings welded with KF flanges at their end connections. They are designed for quick assembly and disassembly, making them ideal for applications that require frequent maintenance or reconfiguration in high vacuum systems.
As a professional manufacturer of stainless steel pipe fittings, we also produce KF fittings, including KF 90 degree elbows, tees, and crosses. These fittings are available in both USA and Europe standards for different tube outside diameters. They are made of stainless steel 304 or 316L, with sizes ranging from KF16 to KF50.
Model No. | A | B | C | R |
---|---|---|---|---|
E90A-16 | 38.3 | 19.05 | 30 | 28.6 |
E90A-25 | 56.2 | 25.4 | 40 | 38.1 |
E90A-40 | 78.4 | 38.1 | 55 | 57.2 |
E90A-50 | 107.0 | 50.8 | 75 | 76.2 |
Model No. | A | B | C | R |
---|---|---|---|---|
E90E-16 | 40.0 | 19.05 | 30 | 28.6 |
E90E-25 | 50.8 | 25.4 | 40 | 38.1 |
E90E-40 | 65.0 | 38.1 | 55 | 57.2 |
E90E-50 | 80.0 | 50.8 | 75 | 76.2 |
Model No. | A | B | C | D |
---|---|---|---|---|
TA-16 | 38.3 | 19.05 | 30 | 76.6 |
TA-25 | 51.4 | 25.4 | 40 | 102.8 |
TA-40 | 61.0 | 38.1 | 55 | 122.0 |
TA-50 | 80.0 | 50.8 | 75 | 160.0 |
Model No. | A | B | C | D |
---|---|---|---|---|
TE-16 | 40 | 19.05 | 30 | 80 |
TE-25 | 50 | 25.4 | 40 | 100 |
TE-40 | 65 | 38.1 | 55 | 130 |
TE-50 | 70 | 50.8 | 75 | 140 |
Model No. | A | B | C | D | E | F |
---|---|---|---|---|---|---|
UTA25-16 | 51.8 | 37.3 | 40 | 30 | 25.4 | 19.05 |
UTA40-16 | 62.5 | 51.8 | 55 | 30 | 38.1 | 19.05 |
UTA40-25 | 62.5 | 61.0 | 55 | 40 | 38.1 | 25.40 |
UTA50-16 | 81.5 | 58.2 | 75 | 30 | 50.8 | 19.05 |
UTA50-25 | 81.5 | 72.1 | 75 | 40 | 50.8 | 25.40 |
UTA50-40 | 81.5 | 70.0 | 75 | 55 | 50.8 | 38.10 |
Model No. | A | B | C | D | E | F |
---|---|---|---|---|---|---|
UTE25-16 | 60 | 40 | 40 | 30 | 25.4 | 19.05 |
UTE40-16 | 65 | 40 | 55 | 30 | 38.1 | 19.05 |
UTE40-25 | 65 | 50 | 55 | 40 | 38.1 | 25.40 |
UTE50-16 | 70 | 50 | 75 | 30 | 50.8 | 19.05 |
UTE50-25 | 70 | 65 | 75 | 40 | 50.8 | 25.40 |
UTE50-40 | 70 | 65 | 75 | 55 | 50.8 | 38.10 |
Model No. | A | B | C | D |
---|---|---|---|---|
4CA-16 | 38.3 | 19.05 | 30 | 76.6 |
4CA-25 | 51.4 | 25.4 | 40 | 102.8 |
4CA-40 | 61.0 | 38.1 | 55 | 122.0 |
4CA-50 | 80.0 | 50.8 | 75 | 160.0 |
Model No. | A | B | C | D |
---|---|---|---|---|
4CE-16 | 40 | 19.05 | 30 | 80 |
4CE-25 | 50 | 25.4 | 40 | 100 |
4CE-40 | 65 | 38.1 | 55 | 130 |
4CE-50 | 70 | 50.8 | 75 | 140 |
