The KF Adapter is a specialized vacuum fitting designed to connect different types or sizes of flanges, pipe threaded fittings, or hoses. It is also called the Hybrid Adapter.

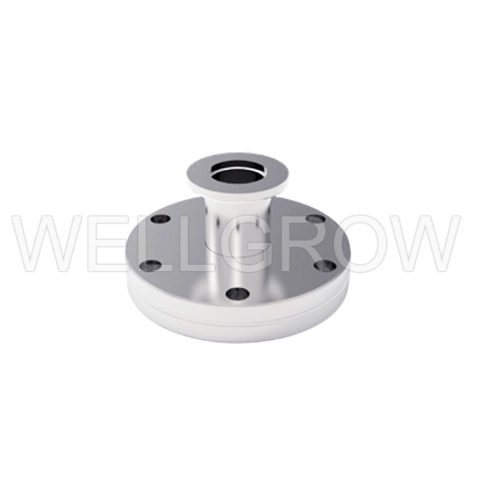

Wellgrow can provide various KF adapters to meet specific needs, such as KF conical reducer, KF to male thread, KF to hose, and KF to ISO tubulated adapters. These adapters are made of stainless steel 304 or 316L.
KF Conical Reducer Adapter SS304 |
KF Straight Reducer SS304 |
KF Male PT Adapter SS304 |
KF Male NPT Adapter SS304 |
KF Female PT Adapter SS304 |
KF Female NPT Adapter SS304 |
KF Rubber Hose Adapter SS304 |
KF To ASA Tubulated Adapter SS304 |
KF To ASA Tubulated Adapter, Groove O'ring SS304 |
KF To ISO Tubulated Adapter SS304 |
KF Quick Disconnect Adapter SS304 |
Model No. | A | B |
---|---|---|
RA16-25 | 40 | 30 |
RA16-40 | 55 | 30 |
RA25-40 | 55 | 40 |
RA16-50 | 75 | 30 |
RA25-50 | 75 | 40 |
RA40-50 | 75 | 55 |
Model No. | A | B |
---|---|---|
SR16-25 | KF25 | KF16 |
SR16-40 | KF40 | KF16 |
SR25-40 | KF40 | KF25 |
SR16-50 | KF50 | KF16 |
SR25-50 | KF50 | KF25 |
SR40-50 | KF50 | KF40 |
Model No. | A | B | C | PT |
---|---|---|---|---|
MA16-PT1/8 | 30 | 35 | 4.7 | 1/8" |
MA16-PT1/4 | 30 | 35 | 7.1 | 1/4" |
MA25-PT1/8 | 40 | 35 | 4.7 | 1/8" |
MA25-PT1/4 | 40 | 35 | 7.1 | 1/4" |
MA25-PT1/2 | 40 | 40 | 11.9 | 1/2" |
MA25-PT3/4 | 40 | 40 | 15.9 | 3/4" |
MA40-PT1/4 | 55 | 35 | 7.1 | 1/4" |
MA40-PT1/2 | 55 | 40 | 11.9 | 1/2" |
MA40-PT3/4 | 55 | 40 | 15.9 | 3/4" |
MA40-PT1 | 55 | 45 | 22.2 | 1" |
MA50-PT1/4 | 75 | 35 | 7.1 | 1/4" |
MA50-PT1/2 | 75 | 40 | 11.9 | 1/2" |
MA50-PT3/4 | 75 | 40 | 15.9 | 3/4" |
MA50-PT1 | 75 | 45 | 22.2 | 1" |
Model No. | A | B | C | NPT |
---|---|---|---|---|
MA16-NPT1/8 | 30 | 35 | 4.7 | 1/8" |
MA16-NPT1/4 | 30 | 35 | 7.1 | 1/4" |
MA25-NPT1/8 | 40 | 35 | 4.7 | 1/8" |
MA25-NPT1/4 | 40 | 35 | 7.1 | 1/4" |
MA25-NPT1/2 | 40 | 40 | 11.9 | 1/2" |
MA25-NPT3/4 | 40 | 40 | 15.9 | 3/4" |
MA40-NPT1/4 | 55 | 35 | 7.1 | 1/4" |
MA40-NPT1/2 | 55 | 40 | 11.9 | 1/2" |
MA40-NPT3/4 | 55 | 40 | 15.9 | 3/4" |
MA40-NPT1 | 55 | 45 | 22.2 | 1" |
MA50-NPT1/4 | 75 | 35 | 7.1 | 1/4" |
MA50-NPT1/2 | 75 | 40 | 11.9 | 1/2" |
MA50-NPT3/4 | 75 | 40 | 15.9 | 3/4" |
MA50-NPT1 | 75 | 45 | 22.2 | 1" |
Model No. | A | B | C | PT |
---|---|---|---|---|
FA16-PT1/8 | 19.05 | 25 | 17 | 1/8” |
FA25-PT1/8 | 25.4 | 25 | 19 | 1/8” |
FA40-PT1/8 | 38.1 | 25 | 32 | 1/8” |
FA50-PT1/8 | 50.8 | 25 | 46 | 1/8” |
FA16-PT1/4 | 19.05 | 25 | 17 | 1/4” |
FA25-PT1/4 | 25.4 | 25 | 19 | 1/4” |
FA40-PT1/4 | 38.1 | 25 | 32 | 1/4” |
FA50-PT1/4 | 50.8 | 25 | 46 | 1/4” |
Model No. | A | B | C | NPT |
---|---|---|---|---|
FA16-NPT1/8 | 19.05 | 25 | 17 | 1/8” |
FA25-NPT1/8 | 25.4 | 25 | 19 | 1/8” |
FA40-NPT1/8 | 38.1 | 25 | 32 | 1/8” |
FA50-NPT1/8 | 50.8 | 25 | 46 | 1/8” |
FA16-NPT1/4 | 19.05 | 25 | 17 | 1/4” |
FA25-NPT1/4 | 25.4 | 25 | 19 | 1/4” |
FA40-NPT1/4 | 38.1 | 25 | 32 | 1/4” |
FA50-NPT1/4 | 50.8 | 25 | 46 | 1/4” |
Model No. | A | B |
---|---|---|
RHA-10 | 12.7 | 40 |
RHA-16 | 19.05 | 40 |
RHA-25 | 25.4 | 40 |
RHA-40 | 38.1 | 50 |
RHA-50 | 50.8 | 50 |
Model No. | A | B | ASA |
---|---|---|---|
TA40-A38 | 55 | 127 | 1-1/2” |
TA40-A50 | 55 | 152 | 2” |
TA40-A75 | 55 | 191 | 3” |
TA50-A38 | 75 | 127 | 1-1/2” |
TA50-A50 | 75 | 152 | 2” |
TA50-A75 | 75 | 191 | 3” |
Model No. | A | B | C | ASA |
---|---|---|---|---|
TA40-A50G | 55 | 152 | 88.5 | 2” |
TA40-A75G | 55 | 191 | 114.5 | 3” |
TA50-A50G | 75 | 152 | 88.5 | 2” |
TA50-A75G | 75 | 191 | 114.5 | 3” |
Model No. | A | B | C |
---|---|---|---|
TA25-ISO63 | 95 | 40 | 25.4 |
TA40-ISO63 | 95 | 55 | 38.1 |
TA50-ISO63 | 95 | 75 | 50.8 |
TA40-ISO80 | 110 | 55 | 38.1 |
TA50-ISO80 | 110 | 75 | 50.8 |
TA25-ISO100 | 130 | 40 | 25.4 |
TA40-ISO100 | 130 | 55 | 38.1 |
TA50-ISO100 | 130 | 75 | 50.8 |
Model No. | A | B | C | Tube Size |
---|---|---|---|---|
MDA16-1/4 | 30 | 33.30 | 6.60 | 1/4” |
MDA16-1/2 | 30 | 36.50 | 13.00 | 1/2” |
MDA16-3/4 | 30 | 46.00 | 19.40 | 3/4” |
MDA25-1/2 | 40 | 35.00 | 13.00 | 1/2” |
MDA25-3/4 | 40 | 44.45 | 19.30 | 3/4” |
MDA25-1 | 40 | 50.80 | 25.65 | 1” |
MDA40-1/2 | 55 | 35.00 | 13.00 | 1/2” |
MDA40-3/4 | 55 | 44.45 | 19.30 | 3/4” |
MDA40-1 | 55 | 50.80 | 25.65 | 1” |
MDA40-1-1/2 | 55 | 60.30 | 38.40 | 1-1/2” |
MDA50-1-1/2 | 75 | 60.30 | 38.40 | 1-1/2” |
MDA50-2 | 75 | 63.50 | 51.00 | 2” |
