CF Nipple
Sanitary Fittings

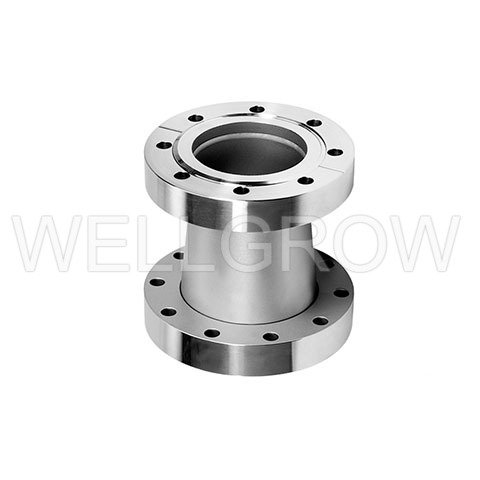

The CF Nipple is a type of vacuum fitting consisting of CF flanges welded onto both sides of a tube, while a CF Half Nipple consists of a CF flange welded onto one side of a tube.  They are used to connect vacuum tubing or equipment.

Our CF nipples and half nipples come with rotatable and fixed CF flanges.  They are made of stainless steel 304 and 316L, providing excellent corrosion resistance and durability.

Material： Stainless Steel 304, 316L
Size： CF16 ~ CF200
Vacuum Range： Down to 10-13 Torr

Available Parts：
CF Half Nipple, Rotatable SS304
CF Half Nipple, Fixed SS304
CF Half Nipple with Tapped Flange, Rotatable SS304
CF Half Nipple with Tapped Flange, Fixed SS304
CF Nipple, Fixed SS304
CF Nipple, 1 Flange Rotatable SS304
  • CF Half Nipple, Rotatable SS304
    Model No. A B C
    HN-CR16 33.8 38.1 19.05
    HN-CR35 69.5 62.5 38.10
    HN-CR63 113.6 104.6 63.50
    HN-CR100 151.6 135.0 101.60
    HN-CR150 202.5 166.6 152.40
    HN-CR200 253.2 203.2 203.20
  • CF Half Nipple, Fixed SS304
    Model No. A B C
    HN-CF16 33.8 38.1 19.05
    HN-CF35 69.5 62.5 38.10
    HN-CF63 113.6 104.6 63.50
    HN-CF100 151.6 135.0 101.60
    HN-CF150 202.5 166.6 152.40
    HN-CF200 253.2 203.2 203.20
  • CF Half Nipple with Tapped Flange, Rotatable SS304
    Model No. A B C D
    HN-CRT16 33.8 38.1 19.05 M4
    HN-CRT35 69.5 62.5 38.10 M6
    HN-CRT63 113.6 104.6 63.50 M8
    HN-CRT100 151.6 135.0 101.60 M8
    HN-CRT150 202.5 166.6 152.40 M8
    HN-CRT200 253.2 203.2 203.20 M8
  • CF Half Nipple with Tapped Flange, Fixed SS304
    Model No. A B C D
    HN-CFT16 33.8 38.1 19.05 M4
    HN-CFT35 69.5 62.5 38.10 M6
    HN-CFT63 113.6 104.6 63.50 M8
    HN-CFT100 151.6 135.0 101.60 M8
    HN-CFT150 202.5 166.6 152.40 M8
    HN-CFT200 253.2 203.2 203.20 M8
  • CF Nipple, Fixed SS304
    Model No. A B C
    NI-CF16 33.8 76 19.05
    NI-CF35 69.5 126 38.10
    NI-CF63 113.6 210 63.50
    NI-CF100 151.6 270 101.60
    NI-CF150 202.5 334 152.40
    NI-CF200 253.2 334 203.20
  • CF Nipple, 1 Flange Rotatable SS304
    Model No. A B C
    NI-CR16 33.8 76 19.05
    NI-CR35 69.5 126 38.10
    NI-CR63 113.6 210 63.50
    NI-CR100 151.6 270 101.60
    NI-CR150 202.5 334 152.40
    NI-CR200 253.2 334 203.20
