CF Hardware refers to components designed for use with CF flanges, including CF copper gasket, flange cap, and plate nut.

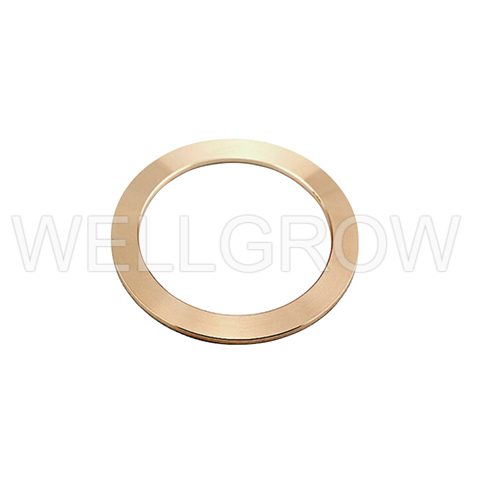

The CF Copper Gasket is placed between CF flanges to provide leak-proof seals when the flanges are bolted together.  It is typically made of OFHC (Oxygen-Free, High Conductivity) copper due to its high purity, ductility, and low outgassing properties, making it ideal for ultra-high vacuum (UHV) sealing.

The CF Flange Cap is a protective cover made of plastic, designed to fit over the sealing surface of the CF flanges.

The CF Plate Nut is a specialized component used to simplify and secure bolt fastening in CF flange assemblies.

Material： Copper, Plastic, Stainless Steel 304, 316L
Size： CF16 ~ CF500
Vacuum Range： Down to 10-13 Torr
Available Parts：
CF Copper Gasket
CF Sliver Plated Copper Gasket
CF Flange Cap Plastic
CF Plate Nut SS304
  • CF Copper Gasket
    Model No. A B
    CG-CF16 21 16
    CG-CF35 48 37
    CG-CF63 82 63
    CG-CF100 120 101
    CG-CF150 171 152
    CG-CF200 222 203
    CG-CF250 272.7 254
  • CF Sliver Plated Copper Gasket
    Model No. A B
    CGS-CF16 21 16
    CGS-CF35 48 37
    CGS-CF63 82 63
    CGS-CF100 120 101
    CGS-CF150 171 152
    CGS-CF200 222 203
    CGS-CF250 272.7 254
  • CF Flange Cap Plastic
    Model No. Suitable Flange
    C-CF63 CF63
    C-CF100 CF100
    C-CF150 CF150
    C-CF200 CF200
    C-CF250 CF250
    C-CF300 CF300
    C-CF350 CF350
    C-CF400 CF400
    C-CF500 CF500
  • CF Plate Nut SS304
    Model No. A B C D
    N-CF16 19.5 13.5 4 M4
    N-CF35 39.5 29.5 6 M6
    N-CF63 50.2 35.2 8 M8
