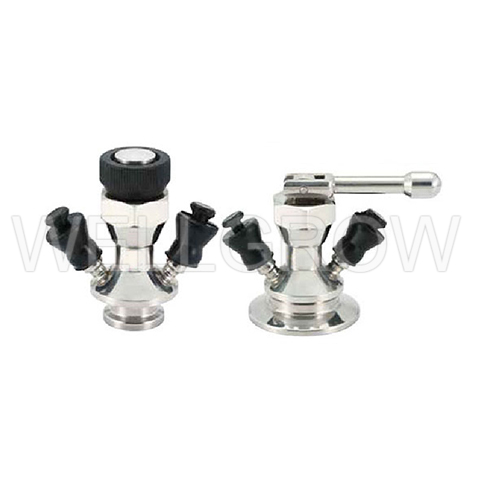

BPE Sample Valve
BPE Sample Valve
Sanitary Fittings
Features:
  1. Connection type:Clamp or Weld or other
  2. Operation:Normal Open & Normal Close design
  3. Working temperature:Full Vacuum:-10℃ ~ 140℃ ( EPDM )
  4. Working pressure:Max 10 Bar
  5. Surface finish:Mirror Polished / Satin / Sand Blasted

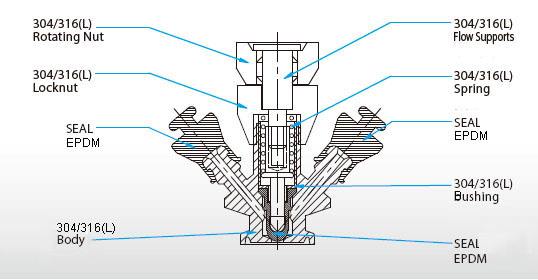

Materials:
  • BPESVW
    Hygienic Sample Valve for BPE, Weld End BPE Sample Valve
    Size ØA ØB
    1/2” 9.4 12.7
    3/4” 15.75 19.05
    1” 22.1 25.4
  • BPESVC
    Hygienic Sample Valve for BPE, Clamp End BPE Sample Valve
    Size ØA
    A37 34.0
    1/2” 25.2
    3/4” 25.2
    1” 50.5
