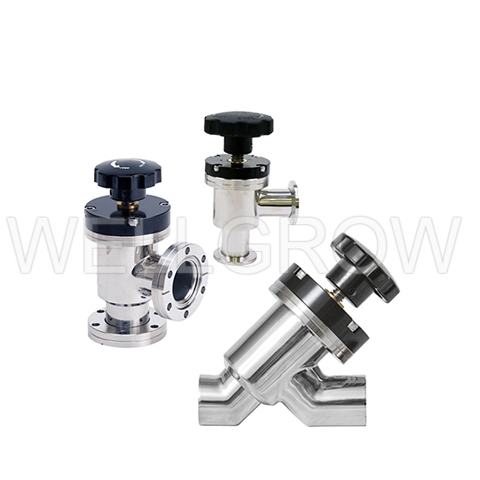

Vacuum Valves
Vacuum Valves
Sanitary Fittings
Material： Stainless Steel 304, 316L
Size： KF16 ~ KF50, CF16 ~ CF35, 3/4" ~ 2"
Features：
  1. Viton o’ring sealed bonnets
  2. Viton o’ring sealed poppets
  3. Viton Seal Bonnet：10-9 Torr Vacuum Rating
  4. Control mode：Manually Operated and Electropneumatically Operated available
Temperature： -20℃ ~ 204℃
Available Types：
KF Angle Valve with Bellows Manually Operated
KF Angle Valve with Bellows Pneumatically Actuated
KF Angle Inline Valve with Bellows Manually Operated
KF Angle Inline Valve with Bellows Pneumatically Actuated
KF Tee Valve with Bellows Manually Operated
KF Tee Valve with Bellows Pneumatically Actuated
CF Angle Valve with Bellows Copper Seal Bonnet Manually Operated
Angle Valve with Bellows Tube End Manually Operated
Angle Valve with Bellows Tube End Pneumatically Actuated
Angle Inline Valve with Bellows Tube End Manually Operated
Angle Inline Valve with Bellows Tube End Pneumatically Actuated
Tee Valve with Bellows Tube End Manually Operated
Tee Valve with Bellows Tube End Pneumatically Actuated
  • KF Angle Valve with Bellows Manually Operated
    Size TUBE OD A B C D
    KF16 3/4” 54.70 122.70 141.50 56.80
    KF25 1” 51.60 127.30 143.30 56.80
    KF40 1-1/2” 60.96 160.00 199.20 75.00
    KF50 2” 86.40 206.90 251.90 89.40
  • KF Angle Valve with Bellows Pneumatically Actuated
    Size TUBE OD A B D
    KF16 3/4” 54.70 138.80 56.80
    KF25 1” 51.60 150.40 56.80
    KF40 1-1/2” 60.96 195.60 75.00
    KF50 2” 86.40 262.40 89.40
  • KF Angle Inline Valve with Bellows Manually Operated
    Size TUBE OD A B C D
    KF16 3/4” 101.60 88.10 101.85 56.80
    KF25 1” 106.70 86.87 105.16 56.80
    KF40 1-1/2” 130.00 115.57 142.50 75.00
    KF50 2” 177.80 157.23 232.41 89.40
  • KF Angle Inline Valve with Bellows Pneumatically Actuated
    Size TUBE OD A B D
    KF16 3/4” 101.60 88.10 56.80
    KF25 1” 106.70 86.87 56.80
    KF40 1-1/2” 130.00 115.57 75.00
    KF50 2” 177.80 157.23 89.40
  • KF Tee Valve with Bellows Manually Operated
    Size TUBE OD A B C D
    KF16 3/4” 54.70 122.70 109.40 56.80
    KF25 1” 51.60 127.30 103.20 56.80
    KF40 1-1/2” 60.96 160.00 122.00 75.00
    KF50 2” 86.40 206.90 172.80 89.40
  • KF Tee Valve with Bellows Pneumatically Actuated
    Size TUBE OD A B C D
    KF16 3/4” 54.70 157.00 109.40 56.80
    KF25 1” 51.60 150.90 103.20 56.80
    KF40 1-1/2” 60.96 195.80 122.00 75.00
    KF50 2” 86.40 261.10 172.80 89.40
  • CF Angle Valve with Bellows Copper Seal Bonnet Manually Operated
    Size TUBE OD A B C D
    CF16 3/4” 57.20 128.50 147.60 56.80
    CF35 1-1/2” 62.30 148.40 186.50 75.00
  • Angle Valve with Bellows Tube End Manually Operated
    TUBE OD A D
    3/4” 46.70 56.80
    1” 47.30 56.80
    1-1/2” 54.00 75.00
    2” 82.10 89.40
  • Angle Valve with Bellows Tube End Pneumatically Actuated
    TUBE OD A B D
    3/4” 54.70 138.80 56.80
    1” 51.60 150.40 56.80
    1-1/2” 60.96 195.60 75.00
    2” 86.40 262.40 89.40
  • Angle Inline Valve with Bellows Tube End Manually Operated
    TUBE OD A D
    3/4” 93.00 56.80
    1” 98.00 56.80
    1-1/2” 116.00 75.00
    2” 168.50 89.40
  • Angle Inline Valve with Bellows Tube End Pneumatically Actuated
    TUBE OD A B D
    3/4” 101.60 88.10 56.80
    1” 106.70 86.87 56.80
    1-1/2” 130.00 115.57 75.00
    2” 177.80 157.23 89.40
  • Tee Valve with Bellows Tube End Manually Operated
    TUBE OD A B C D
    3/4” 54.70 122.70 109.40 56.80
    1” 51.60 127.30 103.20 56.80
    1-1/2” 60.96 160.00 122.00 75.00
    2” 86.40 206.90 172.80 89.40
  • Tee Valve with Bellows Tube End Pneumatically Actuated
    TUBE OD A B C D
    3/4” 54.70 122.70 109.40 56.80
    1” 51.60 127.30 103.20 56.80
    1-1/2” 60.96 160.00 122.00 75.00
    2” 86.40 206.90 172.80 89.40
