Thermometer
Thermometer
Sanitary Fittings
Features：
  1. Sanitary thermometers are stainless steel products specifically designed to meet the demanding sanitary requirements for food dairy, beverage, pharmaceutical and biotech applications.
  2. Complies with 3A sanitary standard, water-proof, shock resistant, and closed structures are durable and accurate, good for long time running.
  3. All series are liquid-filled, special materials movement and bourdon tube have lasting durability. It is applicable to the places of both strong fluctuation and non-corrosive fluid, such as air, water and oil.
Materials：
  1. Process connection： 1-1/2” ~ 4”
    Quick-release clamp piping system
  2. Case & Movement Material：SS304
  3. Ferrule： SUS304 and SUS316L available
  4. Lens： Safety Glass

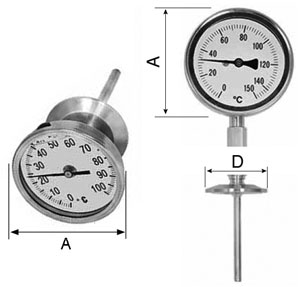

SIZE A
Ø50 56
Ø63 69
Ø80 89
Ø100 112
Ø160 160
SIZE D (Tri-Clamp)
1” 50.5
1-1/2” 50.5
2” 64.0
2-1/2” 77.5
3” 91.0
4” 119.0
