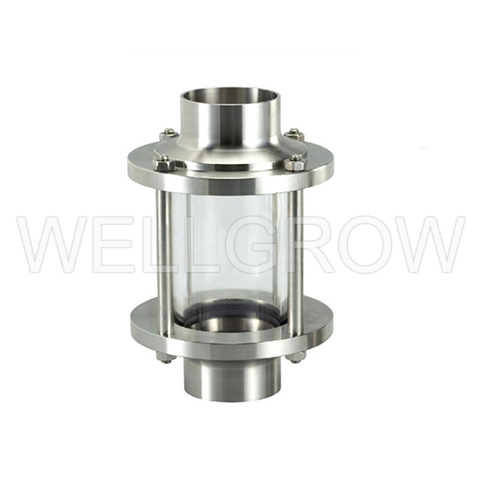

Sight Glass
Sanitary Valves
Features：
  1. Connection：clamp, butt-weld, ball type
  2. Fully precision machined and polished.
  3. Fit for：Food and Pharmaceutical industry.

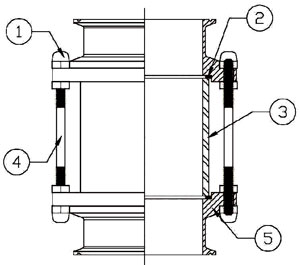

Materials：
  1. Screw Nut：SUS304
  2. Seal：Viton, EPDM, Silicon available
  3. Glass：Non-Toxic
  4. Screw Bolt：SUS304
  5. Body：SUS304, 316, 316L available
  • SG-W
    Sight Glass Weld End
    SIZE ØA T Glass L
    1” 25.4 1.65 100 145.0
    1-1/2” 38.1 1.65 100 163.5
    2” 50.8 1.65 100 170.0
    2-1/2” 63.5 1.65 100 150.0
    3” 76.2 1.65 100 155.0
    4” 101.6 2.10 100 158.0
  • SG-C
    Sight Glass Clamp End
    SIZE ØA ØB Glass L
    1” 25.4 50.5 100 159.0
    1-1/2” 38.1 50.5 100 163.5
    2” 50.8 64.0 100 170.0
    2-1/2” 63.5 77.5 100 173.3
    3” 76.2 91.0 100 178.0
    4” 101.6 119.0 100 196.0
  • SG-WB
    Sight Glass Weld End Ball Type
    SIZE ØA ØB L
    1” 22.1 25.4 120
    1-1/2” 34.8 38.1 120
    2” 47.5 50.8 154
    2-1/2” 60.2 63.5 200
    3” 72.9 76.2 210
    4” 97.4 101.6 240
