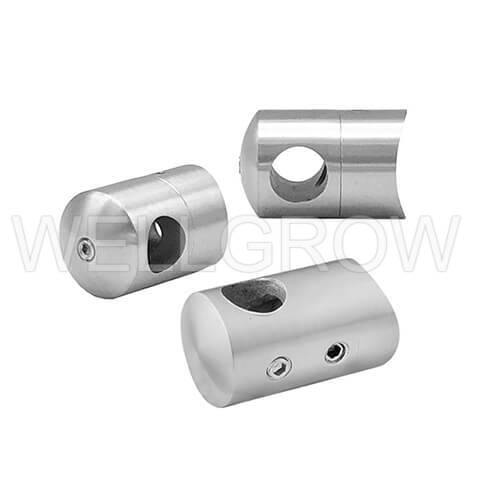

Shuttle Fixing Bases
Shuttle Fixing Bases
Handrail Fittings
Material： Stainless Steel 304, 316 (ASTM A351 CF8, CF8M)
Connection Type： Flush joint
Surface Finish： Satin finish, 180 grit polish, 320 grit polish, 400 grit polish, 600 grit polish (mirror finish)
Wall Thickness： 1.5mm, 2.0mm
Size： 1” ~ 3”
Available Parts：
Shuttle Fixing Base Radiused
Shuttle Fixing Base Plane
Shuttle Fixing Base Ball Type

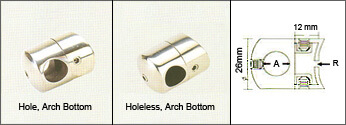

  • Shuttle Fixing Base Radiused Shuttle Fixing Bases
    Model No. A R
    0474A-R1.5" 1/2" 1-1/2"
    0474A-R2" 1/2" 2"
    0474A-R2.5" 1/2" 2-1/2"
    0574A-R1.5" 5/8" 1-1/2"
    0574A-R2" 5/8" 2"
    0574A-R2.5" 5/8" 2-1/2"

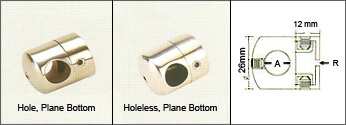

  • Shuttle Fixing Base Plane Shuttle Fixing Bases
    Model No. A R
    0474AP-R1.5" 1/2" 1-1/2"
    0474AP-R2" 1/2" 2"
    0474AP-R2.5" 1/2" 2-1/2"
    0574AP-R1.5" 5/8" 1-1/2"
    0574AP-R2" 5/8" 2"
    0574AP-R2.5" 5/8" 2-1/2"

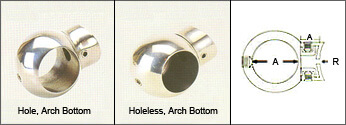

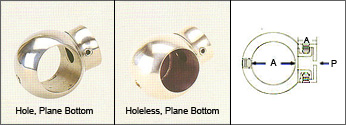

  • Shuttle Fixing Base Ball Type Shuttle Fixing Bases
    Shuttle Fixing Bases
    Model No. A R W
    0675A/B(P)-R1.5" 3/4" 1-1/2" 12.5mm
    0675A/B(P)-R2" 3/4" 2" 12.5mm
    0675A/B(P)-R2.5" 3/4" 2-1/2" 12.5mm
    1075A/B(P)-R1.5" 1" 1-1/2" 13mm
    1075A/B(P)-R2" 1" 2" 13mm
    1075A/B(P)-R2.5" 1" 2-1/2" 13mm
    1275A/B(P)-R1.5" 1-1/4" 1-1/2" 13.5mm
    1275A/B(P)-R2" 1-1/4" 2" 13.5mm
    1275A/B(P)-R2.5" 1-1/4" 2-1/2" 13.5mm
    1575A/B(P)-R1.5" 1-1/2" 1-1/2" 14mm
    1575A/B(P)-R2" 1-1/2" 2" 14mm
    1575A/B(P)-R2.5" 1-1/2" 2-1/2" 14mm
    1575A/B(P)-R3" 1-1/2" 3" 14mm
    2075A/B(P)-R2" 2" 2" 14.5mm
    2075A/B(P)-R2.5" 2" 2-1/2" 14.5mm
    2075A/B(P)-R3" 2" 3" 14.5mm
    2575A/B(P)-R2.5" 2-1/2" 2-1/2" 15mm
    2575A/B(P)-R3" 2-1/2" 3" 15mm
