Sanitary Tube Hangers
Sanitary Tube Hangers
Sanitary Fittings

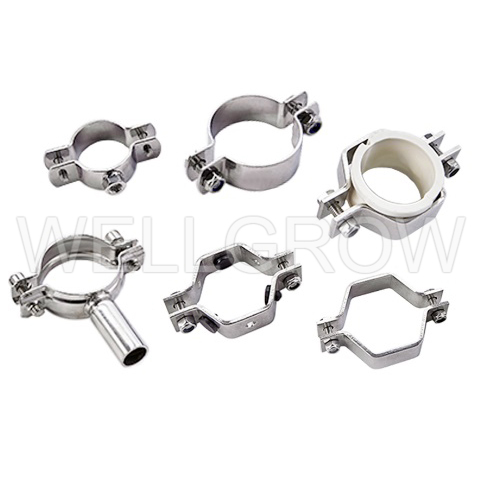

Sanitary Tube Hangers are specialized devices used to support and secure sanitary tubes in food processing, pharmaceuticals, and other sanitary environments, preventing damage from other equipment.  These tube hangers are available in round and hexagonal shapes, and usually come with plastic sleeves or rubber grommets.  Since they do not come into contact with the fluid, they are made of stainless steel 304, which offers sufficient corrosion resistance and durability.

Material： 304
Available Parts：
THR Round Tube Hanger
THRT Round Tube Hanger, 1/2”PT
THR100 Round Tube Hanger with Pipe
THRL Round Tube Hanger with Pipe
THRS Round Tube Hanger with Pipe, Red Seal (ABS)
THHG Hex. Tube Hanger with Black Rubber Grommets
THHP Hex. Tube Hanger with White PP Sleeves
THHS SMS Hex. Tube Hanger, Hex. Nut
THHS100 SMS Hex. Tube Hanger with Pipe, Hex Nut
THHW SMS Hex. Tube Hanger, Wing Nut
THHW100 SMS Hex. Tube Hanger with Pipe, Wing Nut
  • THR
    Round Tube Hanger Round Tube Hanger
    SIZE ØA
    3/4” 19.05
    1" 25.4
    1-1/2" 38.1
    2" 50.8
    2-1/2" 63.5
    3" 76.2
    4" 101.6
  • THRT
    Round Tube Hanger, 1/2”PT Round Tube Hanger, 1/2 ich PT
    SIZE ØA H
    1" 25.4 28.7
    1-1/2" 38.1 35.1
    2" 50.8 41.4
    2-1/2" 63.5 47.8
    3" 76.2 54.1
    4" 101.6 66.8
  • THR100
    Round Tube Hanger with Pipe Round Tube Hanger with Pipe
    SIZE ØA
    3/4” 19.05
    1" 25.4
    1-1/2" 38.1
    2" 50.8
    2-1/2" 63.5
    3" 76.2
    4" 101.6
  • THRL
    Round Tube Hanger with Pipe
    Round Stainless Steel Tube Hangers with Pipe
    SIZE ØA H L
    1/2” 12.7 58 64.0
    3/4” 19.05 61 72.0
    1" 25.4 90 77.5
    1-1/4” 31.8 90 80.5
    1-1/2" 38.1 90 88.5
    2" 50.8 90 104.0
    2-1/2" 63.5 90 117.0
    3" 76.2 90 131.5
    3-1/2” 88.9 90 145.0
    4" 101.6 90 154.0
  • THRS
    Round Tube Hanger with Pipe, Red Seal (ABS)
    Round Tube Hanger with Pipe, Red Seal (ABS)
    SIZE ØA H L
    3/4” 19.05 60 60
    1" 25.4 63 66
    1-1/2" 38.1 70 78
    2" 50.8 76 92
    2-1/2" 63.5 82 104
    3" 76.2 89 119
    4" 101.6 101 149
  • THHG
    Hex. Tube Hanger with Black Rubber Grommets
    Hex. Tube Hanger with Black Rubber Grommets
    SIZE ØA L
    1/2” 12.70 64
    3/4” 19.05 75
    1" 25.4 87
    1-1/2" 38.1 95
    2" 50.8 110
    2-1/2" 63.5 123
    3" 76.2 140
    4" 101.6 167
    6” 152.4 225
  • THHP
    Hex. Tube Hanger with White PP Sleeves Hex. Tube Hanger with White PP Sleeves
    SIZE ØA L
    1/2” 12.70 64
    3/4” 19.05 75
    1" 25.4 87
    1-1/2" 38.1 95
    2" 50.8 110
    2-1/2" 63.5 123
    3" 76.2 140
    4" 101.6 167
    6” 152.4 225
  • THHS
    SMS Hex. Tube Hanger, Hex. Nut SMS Hex. Tube Hanger, Hex. Nut
    SIZE ØA
    1" 25.0
    1-1/2" 38.0
    2" 51.0
    2-1/2" 63.5
    3" 76.1
    4" 104.0
  • THHS100
    SMS Hex. Tube Hanger with Pipe, Hex Nut SMS Hex. Tube Hanger with Pipe, Hex Nut
    SIZE ØA
    1" 25.0
    1-1/2" 38.0
    2" 51.0
    2-1/2" 63.5
    3" 76.1
    4" 104.0
  • THHW
    SMS Hex. Tube Hanger, Wing Nut SMS Hex. Tube Hanger, Wing Nut
    SIZE A
    1" 25.0
    1-1/2" 38.0
    2" 51.0
    2-1/2" 63.5
    3" 76.1
    4" 104.0
  • THHW100
    SMS Hex. Tube Hanger with Pipe, Wing Nut SMS Hex. Tube Hanger with Pipe, Wing Nut
    SIZE ØA
    1" 25.0
    1-1/2" 38.0
    2" 51.0
    2-1/2" 63.5
    3" 76.1
    4" 104.0
