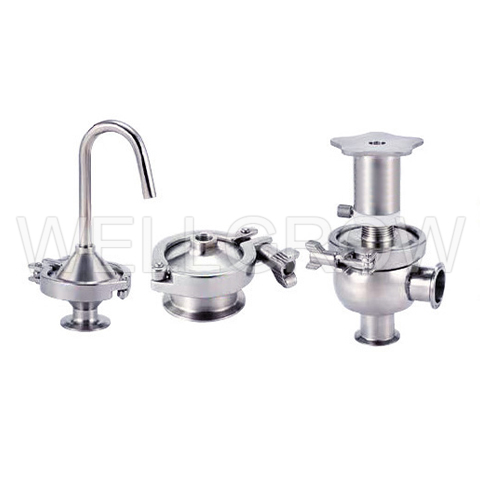

Relief Valve
Sanitary Valves
Features：
  1. Surface：Polished, Electric Polished available
    ID Ra ＜ 0.8μm or 0.4μm
  2. Working pressure：0.1kgs/cm² ~ 7kgs/cm²
  3. Air release valve is relief out over-load air pressure on your tank or pipe line.
  4. Air blow valve is applied for air out the pipe line.
Materials：
Body：SUS304, SUS316L
Made by Forged or Solid Bar
  • ABV
    Air Blow Valve
    SIZE ØA L
    1” 50.5 55
    1-1/2” 50.5 55
    2” 64.0 55
  • ARV
    Air Release Valve
    SIZE ØA ØB C L
    1” 22.1 50.5 82 158
    1-1/2” 34.8 50.5 82 158
    2” 47.5 64.0 82 158
  • RV
    Relief Valve
    SIZE ØA ØB C D
    1” 22.1 50.5 63.50 63.50
    1-1/2” 34.8 50.5 69.85 69.85
    2” 47.5 64.0 88.90 88.90
    2-1/2” 60.2 77.5 88.90 88.90
    3” 60.2 91.0 95.25 95.25
