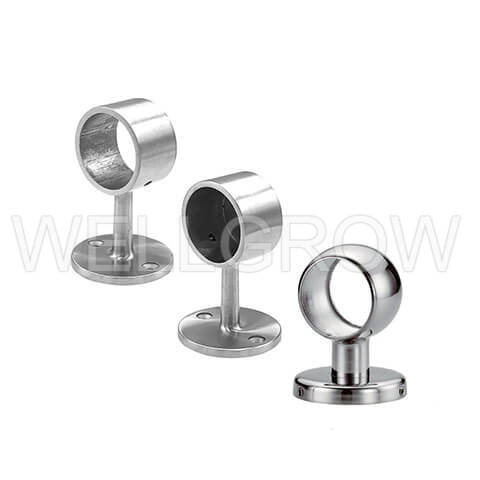

Railing Brackets Straight Support
Handrail Fittings
Material： Stainless Steel 304, 316 (ASTM A351 CF8,
CF8M)
Connection Type： Flush joint
Surface Finish： Satin finish, 180 grit polish, 320
grit polish, 400 grit polish, 600 grit polish (mirror finish)
Wall Thickness： 1.5mm, 2.0mm
Size： 1” ~ 3”
-

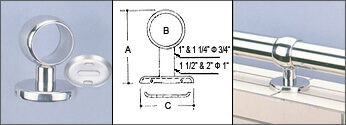

Railing Bracket Center
Model No. B A C 1058A 1" 95mm 65mm 1258A 1-1/4" 95mm 65mm 1558A 1-1/2" 100mm 78mm 2058A 2" 100mm 78mm -

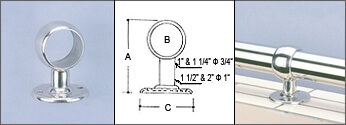

Railing Bracket Center
Model No. B A C 1058B 1" 95mm 65mm 1258B 1-1/4" 95mm 65mm 1558B 1-1/2" 100mm 78mm 2058B 2" 100mm 78mm -

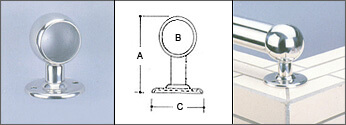

Railing Bracket End
Model No. B A C 1059B 1" 95mm 65mm 1259B 1-1/4" 95mm 65mm 1559B 1-1/2" 100mm 78mm 2059B 2" 100mm 78mm -

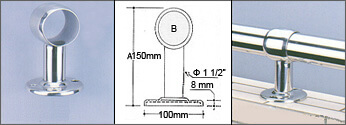

Railing Bracket Center
Model No. B A 2561B 2-1/2" 150mm 3061B 3" 150mm -
Railing Bracket End
Model No. B A 2562B 2-1/2" 150mm 3062B 3" 150mm -

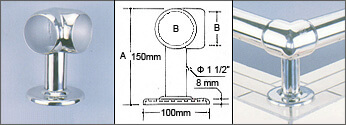

Railing Bracket Corner
Model No. B A 2563B 2-1/2" 150mm 3063B 3" 150mm
