Pressure Gauge
Pressure Gauge
Sanitary Fittings
Features：

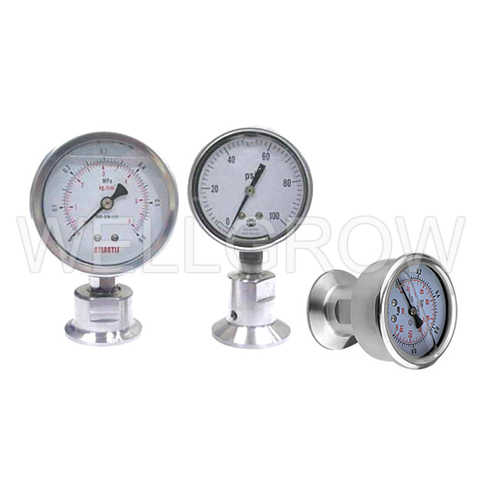

  1. Sanitary pressure gauges are stainless steel products specifically designed to meet the demanding sanitary requirements for food dairy, beverage, pharmaceutical and biotech applications.
  2. Complies with 3A sanitary standard, water-proof, shock resistant, and closed structures are durable and accurate, good for long time running.
  3. All series are liquid-filled, special materials movement and bourdon tube have lasting durability. It is applicable to the places of both strong fluctuation and non-corrosive fluid, such as air, water and oil.
Materials：
  1. Process connection： 1-1/2”, 2”, 2-1/2”
    Quick-release clamp piping system
  2. Suitable Pressure Ranges： 15psi～600psi
  3. Instrument Connection： 1/4” NPT / BSPT or 1/2” NPT / BSPT
  4. Fill Fluid： Glycerine (Vegetable oil)
  5. Max temperature： standard type -120℃, special type -150℃
  6. Case & Movement Material： SS304
  7. Connection / Diaphragm / Bourdon Tube： SUS316L
  8. Ferrule： SUS304, SUS316L available
  9. Lens： Safety Glass

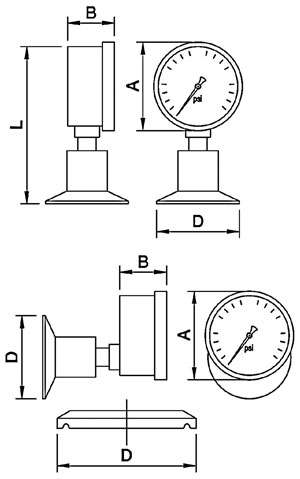

SIZE A B L
Ø50 56 30 100
Ø63 69 30 122
Ø80 89 30 140
Ø100 112 47 166
Ø160 160 50 224
SIZE D (Tri-Clamp)
1” 50.5
1-1/2” 50.5
2” 64.0
2-1/2” 77.5
3” 91.0
4” 119.0
