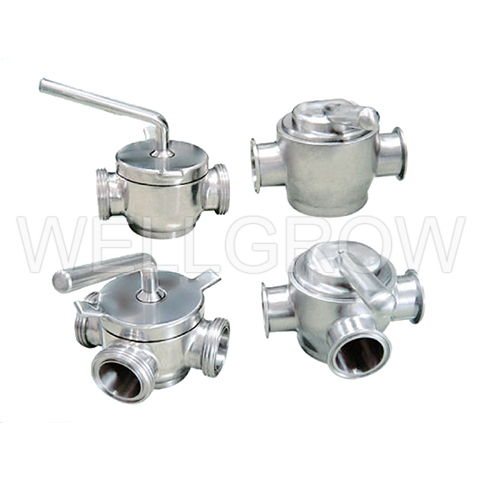

Plug Valve
Sanitary Valves
Features：
  1. Connection：clamp, butt-weld, male end
  2. Max working pressure：3 bar ~ 10 bar
  3. Temperature：Below 100°F
  4. Plugs are available in rubber or stainless steel
  5. For use with non-hazardous products
Materials：
SUS304 / SUS316L with hard/thick chrome coating

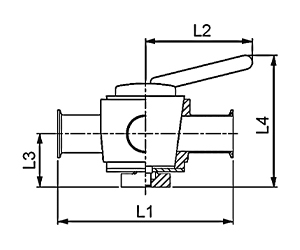

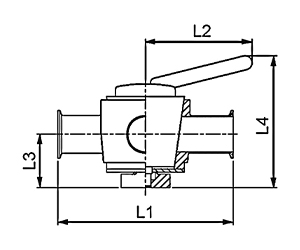

  • 2WPA
    2-Way Plug Valve
    SIZE
    (Tube O.D.)    		 L1 L2 L3 L4
    Weld Clamp
    1” 184.2 115.9 117.0 58.3 128.4
    1-1/2” 198.4 147.6 142.7 61.0 164.4
    2” 223.8 173.0 144.2 72.4 178.0
    2-1/2” 260.4 209.6 150.6 86.2 223.4
    3” 290.5 239.7 180.7 90.6 241.4
  • 2WPE
    2-Way Plug Valve
    SIZE
    (Tube O.D.)    		 L1 L2 L3
    Weld Male Clamp
    1” DN25 66.3 95.3 94.9 139.19 26
    1-1/2” DN40 85.1 118.1 113.7 139.19 35
    2” DN50 114.2 149.2 142.8 143.01 45
    2-1/2” DN65 132.0 172.0 160.6 143.69 55
    3” DN80 168.6 213.6 197.2 143.81 70
    4” DN100 206.3 260.3 234.9 174.21 75
  • 3WPA
    3-Way Plug Valve
    SIZE
    (Tube O.D.)    		 L1 L2 L3 L4
    Weld Clamp
    1” 184.2 115.9 117.0 58.3 128.4
    1-1/2” 198.4 147.6 142.7 61.0 164.4
    2” 223.8 173.0 144.2 72.4 178.0
    2-1/2” 260.4 209.6 150.6 86.2 223.4
    3” 290.5 239.7 180.7 90.6 241.4
  • 3WPE
    3-Way Plug Valve
    SIZE
    (Tube O.D.)    		 L1 L2 L3
    Weld Male Clamp
    1” DN25 66.3 95.3 94.9 139.19 26
    1-1/2” DN40 85.1 118.1 113.7 139.19 35
    2” DN50 114.2 149.2 142.8 143.01 45
    2-1/2” DN65 132.0 172.0 160.6 143.69 55
    3” DN80 168.6 213.6 197.2 143.81 70
    4” DN100 206.3 260.3 234.9 174.21 75
