Perpendicular Joiners
Perpendicular Joiners
Handrail Fittings
Material： Stainless Steel 304, 316 (ASTM A351 CF8, CF8M)
Connection Type： Flush joint
Surface Finish： Satin finish, 180 grit polish, 320 grit polish, 400 grit polish, 600 grit polish (mirror finish)
Wall Thickness： 1.5mm, 2.0mm
Size： 1” ~ 3”
Available Parts：
Perpendicular Joiner Flush Fitting
Perpendicular Joiner Flush Fitting
Perpendicular Joiner Through Ring
Perp. Joiner Expanding Cage External Fit
Perp. Joiner Expanding External Cap

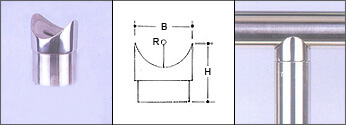

  • Perpendicular Joiner Flush Fitting Perpendicular Joiners
    Model No. B R H
    2027AxR2" 2" 2" 2-1/4"
    2027AxR2.5" 2" 2-1/2" 2"
    2027AxR3" 2" 3" 1-7/8"

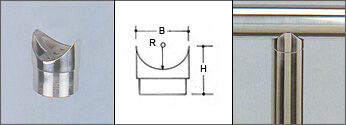

  • Perpendicular Joiner Flush Fitting Perpendicular Joiners
    Model No. B R H
    1527AxR1.5" 1-1/2" 1-1/2" 1-3/4"
    1527AxR2" 1-1/2" 2" 1-3/4"
    1527AxR2.5" 1-1/2" 2-1/2" 1-3/4"

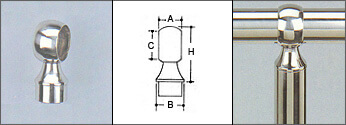

  • Perpendicular Joiner Through Ring Perpendicular Joiners
    Model No. B C H
    1513AxC0.5" 1-1/2" 1-1/2" 2-3/4"
    1513AxC2" 1-1/2" 2" 2-3/4"
    2013AxC0.5" 2" 1-1/2" 3-1/2"
    2013AxC2" 2" 2" 3-1/2"
  • Perp. Joiner Expanding Cage External Fit Perpendicular Joiners
    Model No. R
    313AL-1" 1" ~ 3"
    313AL-1.25" 1-1/4" ~ 3"
    313AL-1.5" 1-1/2" ~ 3"
    313AL-2" 2" ~ 3"
    313AL-2.5" 2-1/2" ~ 3"
  • Perp. Joiner Expanding External Cap Perpendicular Joiners
    Model No. R
    314AL-1" 1" ~ 3"
    314AL-1.25" 1-1/4" ~ 3"
    314AL-1.5" 1-1/2" ~ 3"
    314AL-2" 2" ~ 3"
    314AL-2.5" 2-1/2" ~ 3"
