Modulating Valve
Sanitary Valves
Features：
  1. Connection type：Clamp connections accord to ISO 2852
  2. Leakage standard：PTFE material soft seats meet FDA
  3. Travel：20mm for DN25 (1”) ~ DN50 (2”), 30mm for DN65 (2-1/2”) ~ DN100 (4”)
  4. Quick change trim：each size has 2 to 4 flow capacity plug choose, and allows to quickly change the plug. Easy to maintenance.
  5. Stainless steel diaphragm actuator cases make resist to get rusty out door, and accept polish finish optional case. Supply fail to open and close.
  6. Surface finish：0.4μm for Internal, 0.8μm for external
Materials：
  1. Flow area：AISI 316L
  2. Other steel parts：AISI 304
  3. Gasket for flow area：EPDM / NBR / FKM / PTFE
  4. Other seals：NBR and EPDM
  • MV-A

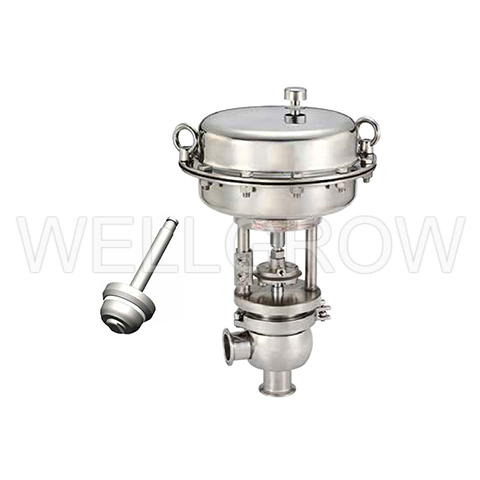

    Pneumatic Modulating Valve L-Type Clamp End
    SIZE ØA ØB C ØD L1 L2
    1” 22.1 50.5 58.5 250 50.6 489
    1-1/2” 34.8 50.5 81.2 300 61.0 557
    2” 47.5 54.0 85.7 300 65.4 564
    2-1/2” 60.2 77.5 103.1 300 72.1 580
    3” 72.9 91.0 116.4 350 79.7 651
