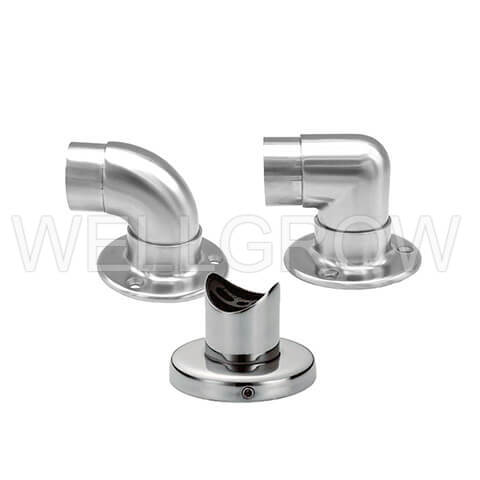

Joiner Base Plates
Joiner Base Plates
Handrail Fittings
Material： Stainless Steel 304, 316 (ASTM A351 CF8, CF8M)
Connection Type： Flush joint
Surface Finish： Satin finish, 180 grit polish, 320 grit polish, 400 grit polish, 600 grit polish (mirror finish)
Wall Thickness： 1.5mm, 2.0mm
Size： 1” ~ 3”
Available Parts：
90° Wall Flange
Flush 90° Elbow With Base Plate & Cover
Perp. Joiner With Base Plate & Cover
Flush 90° Elbow With Base Plate
Perp. Joiner With Base Plate

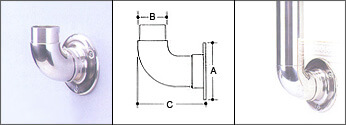

  • 90° Wall Flange Joiner Base Plates
    Model No. B A C
    1524A 1-1/2" 3" 3-1/2"
    2024A 2" 4" 3-3/4"
    2524A 2-1/2" 5" 4-5/8"
  • Flush 90° Elbow With Base Plate & Cover Joiner Base Plates
    Model No. B
    1270 1-1/4"
    1570 1-1/2"
    1270T 1-1/4" Ti-plated
    1570T 1-1/2" Ti-plated
  • Perp. Joiner With Base Plate & Cover Joiner Base Plates
    Model No. B
    1271 1-1/4"
    1571 1-1/2"
    1271T 1-1/4" Ti-plated
    1571T 1-1/2" Ti-plated
  • Flush 90° Elbow With Base Plate Joiner Base Plates
    Model No. B
    1272 1-1/4"
    1572 1-1/2"
  • Perp. Joiner With Base Plate Joiner Base Plates
    Model No. B
    1273 1-1/4"
    1573 1-1/2"
