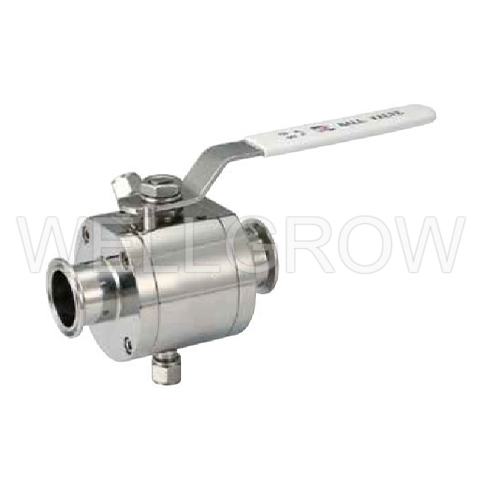

High Purity Ball Valve
Sanitary Valves
Features:
  1. Blow-out proof stem / solid ball.
  2. Investment cast stainless steel CF8M or CF3M.
  3. Ball and end polished rate 20RA.
  4. Size:1” ~ 3”
Options:
  1. Full cavity filled PTFE seats or Half cavity seat.
  2. Locking device available

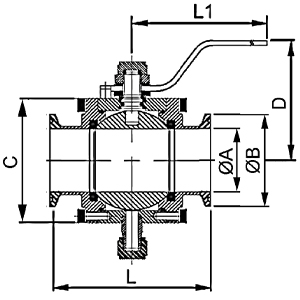

SIZE ØA ØB L L1 C D
1” 22.2 50.4 95.3 163.5 58.7 60.3
1-1/2” 35.0 50.4 108.0 163.5 77.8 71.4
2” 47.6 63.9 119.0 163.5 93.7 79.4
2-1/2” 60.2 77.5 135.0 163.5 106.4 85.7
3” 73.0 90.9 165.1 163.5 125.4 95.3
