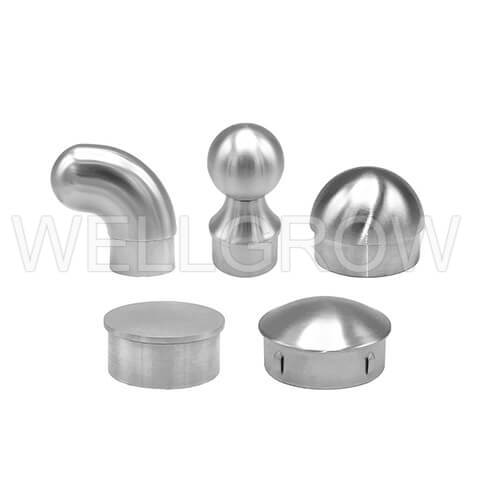

Handrail End Caps
Handrail End Caps
Handrail Fittings
Material： Stainless Steel 304, 316 (ASTM A351 CF8, CF8M)
Connection Type： Flush joint
Surface Finish： Satin finish, 180 grit polish, 320 grit polish, 400 grit polish, 600 grit polish (mirror finish)
Wall Thickness： 1.5mm, 2.0mm
Size： 1” ~ 3”
Available Parts：
End Cap Dome
End Cap Flat
Handrail Ball End
Handrail End 135°
Handrail End 90°
End Cap Light Knock-In

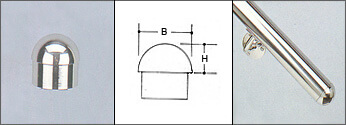

  • End Cap Dome Handrail End Caps
    Model No. B H
    1518A 1-1/2" 3/8"
    2018A 2" 1"

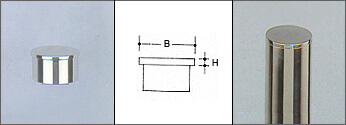

  • End Cap Flat Handrail End Caps
    Model No. B H
    1519A 1-1/2" 3.5mm
    2019A 2" 4mm

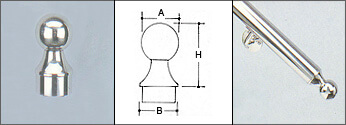

  • Handrail Ball End Handrail End Caps
    Model No. B A H
    1521A-1.5" 1-1/2" 1-1/2" 2-1/4"
    1521A-2" 1-1/2" 2" 2-3/4"
    1521A-2.5" 1-1/2" 2-1/2" 3-1/4"
    1521A-3" 1-1/2" 3" 3-3/4"
    1521A-3.5" 1-1/2" 3-1/2" 4-1/4"
    1521A-4.25" 1-1/2" 4-1/4" 4-1/2"
    2021A-1.5" 2" 1-1/2" 2-1/2"
    2021A-2" 2" 2" 3"
    2021A-2.5" 2" 2-1/2" 3-1/2"
    2021A-3" 2" 3" 4"
    2021A-3.5" 2" 3-1/2" 4-1/2"
    2021A-4.25" 2" 4-1/4" 4-3/4"

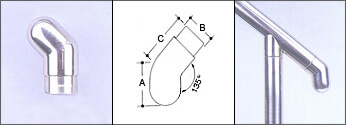

  • Handrail End 135° Handrail End Caps
    Model No. B A C
    1525A 1-1/2" 2-1/2" 2-5/8"
    2025A 2" 2-3/4" 2-3/4"
    2525A 1-1/2" 3-1/2" 3-1/2"

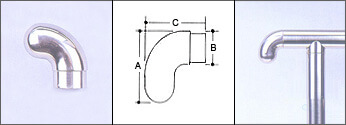

  • Handrail End 90° Handrail End Caps
    Model No. B A C
    1526A 1-1/2" 3-1/4" 3-1/2"
    2026A 2" 3-1/2" 3-1/2"
    2526A 2-1/2" 4-3/8" 4"
    3026A 3" 4-3/8" 4"
  • End Cap Light Knock-In Handrail End Caps
    Model No. A B C D
    1030A 1" 10.0 5.0 0.6 ~ 1.5
    1230A 1-1/4" 10.0 5.5 0.7 ~ 1.6
    1530A 1-1/2" 12.0 7.0 0.8 ~ 2.0
    2030A 2" 15.0 9.0 0.9 ~ 2.0
    2530A 2-1/2" 15.0 11.0 1.0 ~ 2.5
    3030A 3" 15.0 13.0 1.2 ~ 2.8
