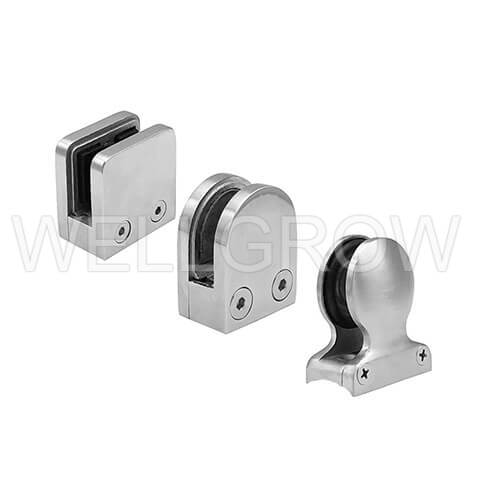

Glass Clamps
Handrail Fittings
Material： Stainless Steel 304, 316 (ASTM A351 CF8,
CF8M)
Connection Type： Flush joint
Surface Finish： Satin finish, 180 grit polish, 320
grit polish, 400 grit polish, 600 grit polish (mirror finish)
Wall Thickness： 1.5mm, 2.0mm
Size： 1” ~ 3”
-

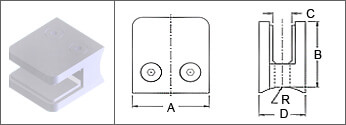

Glass Clip A
Model No. A B C D R 1171 45 45 8 ~ 10 27 21 1173 55 55 8 ~ 12 34 24 -

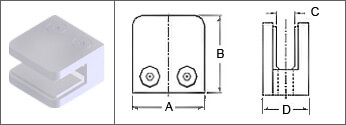

Glass Clip B
Model No. A B C D 1172 45 45 8 ~ 10 27 1174 55 55 8 ~ 12 34 -

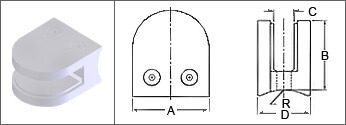

Glass Clip C
Model No. A B C D R 1175 55 60 8 ~ 12 33 24 1181 40 50 8 ~ 10 24 21 1183 45 62 8 ~ 12 27 24 -

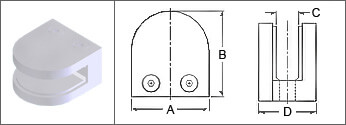

Glass Clip D
Model No. A B C D 1176 55 60 8 ~ 12 33 1182 40 50 8 ~ 10 24 1184 45 62 8 ~ 12 27 -

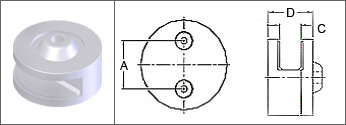

Glass Clip E
Model No. A C D 1191 32 8 ~ 12 27 -

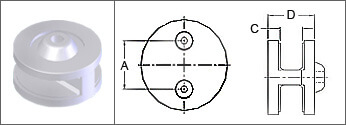

Glass Clip F
Model No. A C D 1192 32 8 ~ 12 27 -

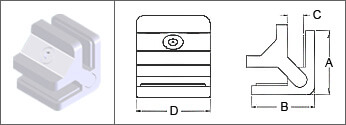

Glass Clip G
Model No. A B C D 1193 45 45 8 ~ 10 45 -

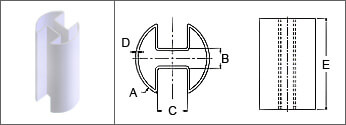

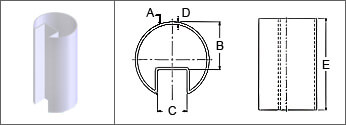

Glass Clip H
Model No. A B C D E 1195 2" 31.5 10 ~ 20 1.5 100 2-1/2" 3" 4" -
Glass Clip I
Model No. A B C D E 1196 2" 13 10 ~ 20 1.5 100 2-1/2" 3" 4" -

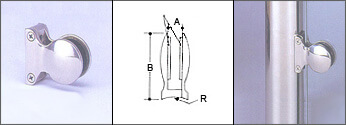

Drop Shape Glass Clip
Model No. A B R 0023A 1/2" 2" 1523A 1/2" 2" 1-1/2" 2023A 1-1/2" 2" 2" 2523A 1/2" 2" 2-1/2"
