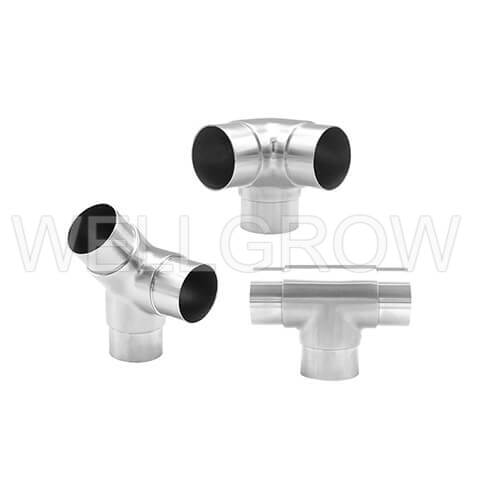

Flush Tees
Flush Tees
Handrail Fittings
Material： Stainless Steel 304, 316 (ASTM A351 CF8, CF8M)
Connection Type： Flush joint
Surface Finish： Satin finish, 180 grit polish, 320 grit polish, 400 grit polish, 600 grit polish (mirror finish)
Wall Thickness： 1.5mm, 2.0mm
Size： 1” ~ 3”
Available Parts：
Flush Joiner Tee (Equal)
Flush Joiner 90° Ball Tee
Flush Joiner 90° Tee
Flush Joiner 135° Tee
Flush Joiner 4-Way Tee

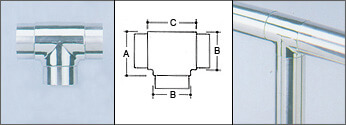

  • Flush Joiner Tee (Equal) Flush Tees
    Model No. B A C
    1505E 1-1/2" 2" 2-3/8"
    2005E 2" 2-1/4" 2-5/8"

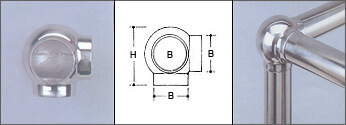

  • Flush Joiner 90° Ball Tee Flush Tees
    Model No. B H
    2006B 2" 3-3/8"

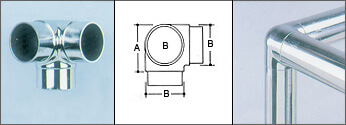

  • Flush Joiner 90° Tee Flush Tees
    Model No. B A
    1506E 1-1/2" 2"
    2006E 2" 2-1/4"

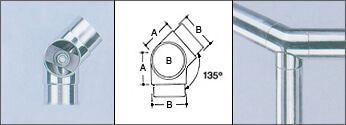

  • Flush Joiner 135° Tee Flush Tees
    Model No. B A
    1507E 1-1/2" 1-5/8"
    2007E 2" 1-3/4"
    1507EE 1-1/2" 1-5/8" Custom-Angle
    2007EE 2" 1-3/4" Custom-Angle

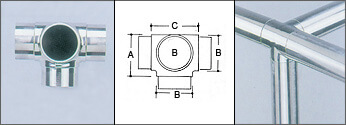

  • Flush Joiner 4-Way Tee Flush Tees
    Model No. B A C
    1508E 1-1/2" 2" 2-3/8"
    2008E 2" 2-1/4" 2-5/8"
