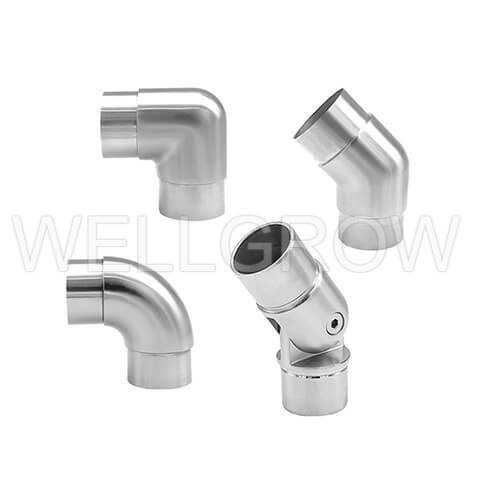

Flush Elbows
Flush Elbows
Handrail Fittings
Material： Stainless Steel 304, 316 (ASTM A351 CF8, CF8M)
Connection Type： Flush joint
Surface Finish： Satin finish, 180 grit polish, 320 grit polish, 400 grit polish, 600 grit polish (mirror finish)
Wall Thickness： 1.5mm, 2.0mm
Size： 1” ~ 3”
Available Parts：
Flush Joiner 90° Radiused
Flush Joiner 90°
Flush Joiner 135°

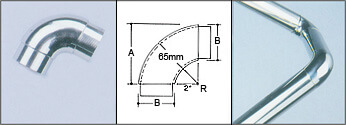

  • Flush Joiner 90° Radiused Flush Elbows
    Model No. B A R
    1501E 1-1/2" 2-5/8"
    2001E 2" 2-5/8"
    2501E 2-1/2" 3" 65mm
    2501EL 2-1/2" 4" 110mm
    3001E 3" 4-3/8" 110mm

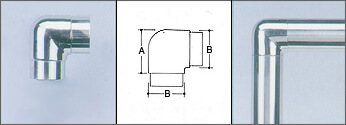

  • Flush Joiner 90° Flush Elbows
    Model No. B A
    1502E 1-1/2" 2"
    2002E 2" 2-1/4"

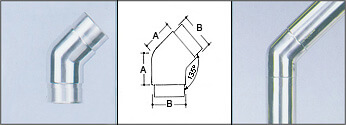

  • Flush Joiner 135° Flush Elbows
    Model No. B A
    1503E 1-1/2" 1-5/8"
    2003EE 2" 1-3/4"
    1503EE 1-1/2" 1-5/8" Custom-Angle
    2003EE 2" 2-3/4" Custom-Angle
