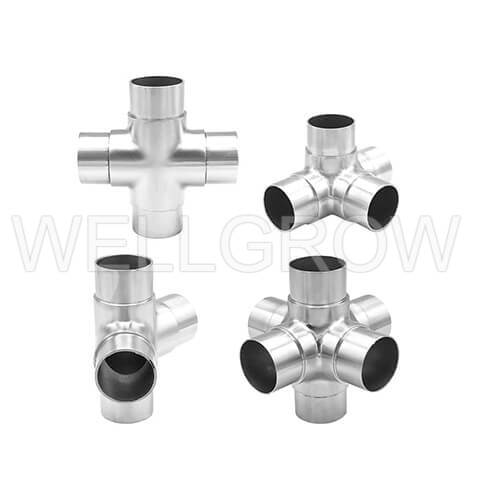

Flush Cross
Flush Cross
Handrail Fittings
Material： Stainless Steel 304, 316 (ASTM A351 CF8, CF8M)
Connection Type： Flush joint
Surface Finish： Satin finish, 180 grit polish, 320 grit polish, 400 grit polish, 600 grit polish (mirror finish)
Wall Thickness： 1.5mm, 2.0mm
Size： 1” ~ 3”
Available Parts：
Flush Joiner 4-Way 135° Angle Adj. Cross
Flush Joiner 4-Way Cross
Flush Joiner 5-Way Cross

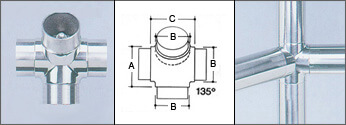

  • Flush Joiner 4-Way 135° Angle Adj. Cross Flush Cross
    Model No. B A C
    1509E 1-1/2" 2" 2-3/8"
    2009E 2" 2-1/4" 2-5/8"
    1509EL 1-1/2" 2" 2-3/8" Adj. Types
    2009EL 2" 3-3/4" 2-5/8" Adj. Types

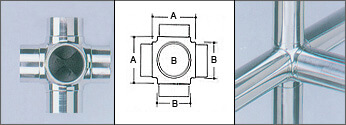

  • Flush Joiner 4-Way Cross Flush Cross
    Model No. B A
    1510E 1-1/2" 2-3/8"
    2010E 2" 2-5/8"

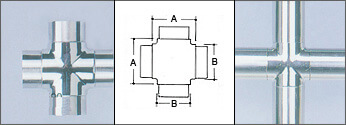

  • Flush Joiner 5-Way Cross Flush Cross
    Model No. B A
    1511E 1-1/2" 2-3/8"
    2011E 2" 2-5/8"
