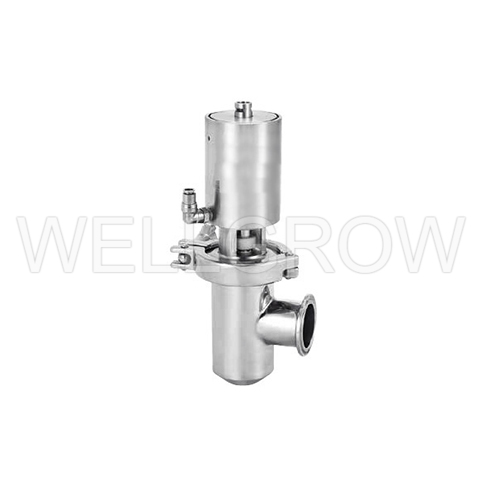

Filling Valve
Sanitary Valves
Features：
  1. Max. product pressure (depending on valve specifications)：1000 kpa ( 10 bar )
  2. Min. product pressure：Full vacuum
  3. Temperature：-10℃ to 140℃ ( EPDM )
  4. Air pressure：5 bar to 7 bar
  5. Air connections：R1/8" BSP female thread
Materials：
  1. Product wetted steel parts：AISI 316L
  2. Other steel parts：AISI 304
  3. Plug stem：AISI 316L with hard chrome planted stem surface
  4. Product wetted seals：EPDM rubber
  5. Other seals：NBR
  6. Finish：Semi bright
Opening/Closing Time will be effected by the following：
  1. The air supply (air pressure)
  2. The length and dimensions of the air hose
  3. Number of valves connected to same air hose
  4. Use of single solenoid valve for serial connected air actuator functions
  5. Product pressure
  • FV
    Filling Valve
    SIZE ØA ØB ØC ØD ØE L
    1”x1” 22.1 50.5 22.1 55 60 165
    1”x1-1/2” 34.8 50.5 22.1 55 60 165
    1”x2” 47.5 64.0 22.1 66 85 292
    1-1/2”x1-1/2” 34.8 50.5 34.8 66 60 165
    1-1/2”x2” 47.5 64.0 34.8 66 85 292
