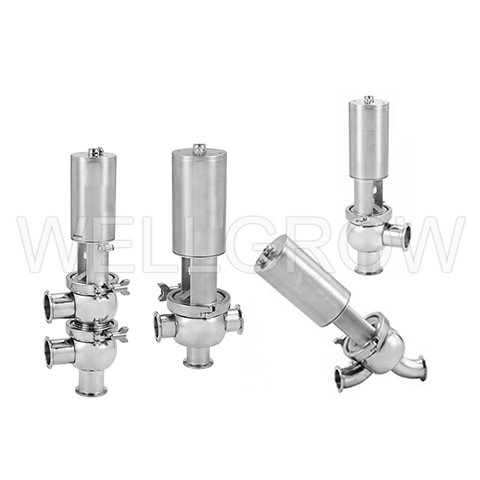

Divert Valve Auto Control
Sanitary Valves
Features：
  1. Max. production pressure：10 bar
  2. Temperature：-10℃ to 140℃ ( EPDM )
  3. Air pressure：5 bar to 7 bar
  4. Compressed air：R1/8" ( BSP ), internal thread
Material：
  1. All parts connected with fluid：AISI 316/316L
  2. Other metal parts：304
  3. Seal：EPDM / Silicone / Viton ( FKM ) / PTFE
Flow Types：
L T Y F
L/L T/L L/T T/T
Opening/Closing Time：
  1. The air supply (air pressure)
  2. The length and dimensions of the air hose
  3. Number of valves connected to same air hose
  4. Use of single solenoid valve for serial connection
  5. Product pressure
Operation Instruction：

Air/Spring (simple effect) or Air/Air (double effect) for auto control can use automatic control box to get signal transfer and complete individual valve control

- Signal transfer：
  • ⑴ with 10 VDC ~ 30 VDC proximity switch connection： 1 or 2pcs ( PNP or NPN )
  • ⑵ or 3A 125 VAC, 30 VDC micro switch connection： 1 or 2pcs
- Complete individual valve control：

Choose ⑴ or ⑵ + DC24 3.0W electric valve： 1pc & air manifold for complete control box

Operation Instruction
  • STL-A

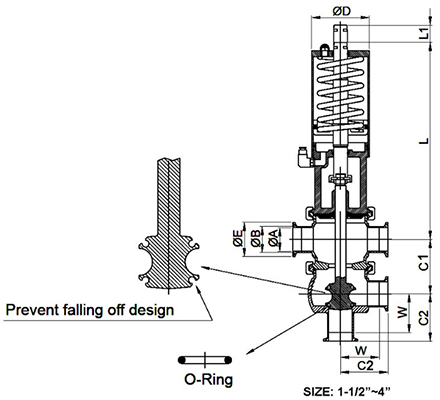

    Pneumatic Divert Valve T/L-Type
    Size ØA ØB ØE ØD C1 C2 C3 W L L1
    1” 22.1 25.4 50.5 60 56.7 63.5 81.4 50.8 153.6 17
    1-1/2” 34.8 38.1 50.5 85 80.0 69.9 - 57.2 290.0 25
    2” 47.5 50.8 64.0 85 92.4 88.9 - 76.2 296.3 25
    2-1/2” 60.2 63.5 77.5 133 120.0 88.9 - 76.2 365.8 32
    3” 72.9 76.2 94.0 133 128.0 95.3 - 82.6 368.9 36
    4” 97.4 101.6 119.0 133 150.8 114.3 - 98.5 645.7 38
  • SY-A
    Pneumatic Divert Valve Y-Type
    SIZE L1 L
    1” 96.1 121.5
    1-1/2" 142.3 167.7
    2” 168.6 194
    2-1/2” 211.6 237
    3” 244.7 270.1
    4” 303.1 334.7

Operation Instruction

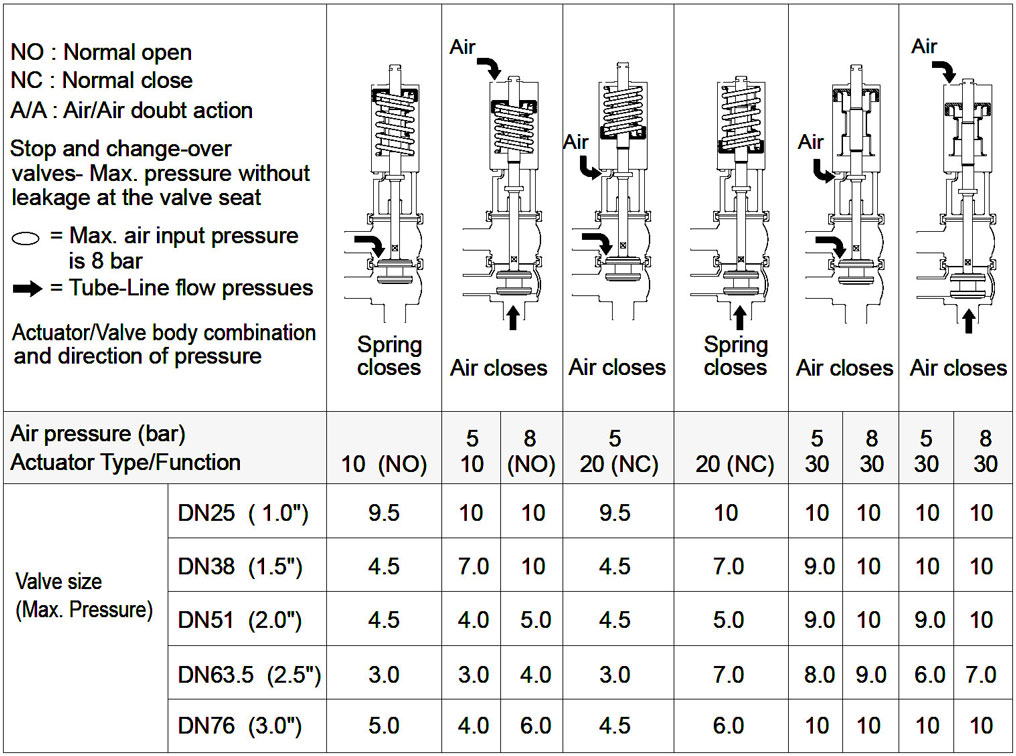

Max. flow tube pressure without leakage of valve seat.
If over table Max. Pressure, adding proof mix. valve is suggested.

Actuator type / function：
(10) SA. Pneumatic downward movement, spring return (NO-lower seat)
(20) AS. Pneumatic upward movement, spring return (NC-lower seat)
(30) AA. Pneumatic upward and downward movement (A/A)
