DIN Weld Fittings
DIN Weld Fittings
Stainless Sanitary Fittings
Material： 304, 316L

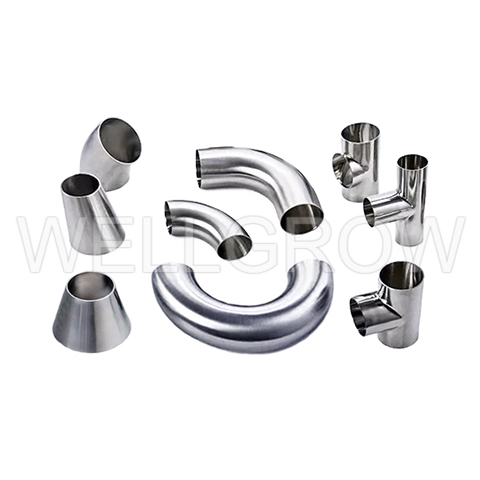

Available Parts：
2KW-D 45° Short Elbow
2WC-D 90° Short Elbow
2S-D 90° Long Elbow
2WUL-D 180° Return Bend
7W-D Equal Tee
7WS-D Pull Tee
31W-D Concentric Reducer
32W-D Eccentric Reducer
7RW-D Reducing Tee
7RWS-D Reducing Pull Tee
  • 2KW-D
    45° Short Elbow DIN Fittings
    SIZE ØA Thickness L
    DN10 12/13 1.5 10.77
    DN15 18/19 1.5 14.50
    DN20 22/23 1.5 16.60
    DN25 28/29 1.5 20.70
    DN32 34/35 1.5 22.80
    DN40 40/41 1.5 24.90
    DN50 52/53 1.5 29.00
    DN65 70 2.0 33.10
    DN80 85 2.0 37.30
    DN100 104 2.0 41.40
    DN125 129 2.0 77.67
    DN150 154 2.0 93.2
    DN200 204 2.0 124.26
    DN250 254 2.0 155.53
    DN300 306 3.0 186.40
  • 2WC-D
    90° Short Elbow DIN Fittings
    SIZE ØA Thickness L
    DN10 12/13 1.5 26.0
    DN15 18/19 1.5 35.0
    DN20 22/23 1.5 40.0
    DN25 28/29 1.5 50.0
    DN32 34/35 1.5 55.0
    DN40 40/41 1.5 60.0
    DN50 52/53 1.5 70.0
    DN65 70 2.0 80.0
    DN80 85 2.0 90.0
    DN100 101.6
    104.0    		 2.0 152.4
    100.0
    DN125 129 2.0 187.5
    DN150 154 2.0 225.0
    DN200 204 2.0 300.0
    DN250 254 2.0 375.0
    DN300 306 3.0 450.0
  • 2S-D
    90° Long Elbow DIN Fittings
    SIZE ØA Thickness L
    DN10 12/13 1.5 51.0
    DN15 18/19 1.5 60.0
    DN20 22/23 1.5 52.0
    DN25 28/29 1.5 65.0
    DN32 34/35 1.5 73.0
    DN40 40/41 1.5 80.0
    DN50 52/53 1.5 92.0
    DN65 70 2.0 105.0
    DN80 85 2.0 119.0
    DN100 101.6
    104.0    		 2.0 175.0
    140.0
    DN125 129 2.0 251.0
    DN150 154 2.0 288.5
    DN200 204 2.0 363.5
    DN250 254 2.0 451.2
    DN300 306 3.0 526.2
  • 2WUL-D
    180° Return Bend DIN Fittings
    SIZE ØA Thickness L
    DN10 12/13 1.5 52
    DN15 18/19 1.5 70
    DN20 22/23 1.5 80
    DN25 28/29 1.5 100
    DN32 34/35 1.5 110
    DN40 40/41 1.5 120
    DN50 52/53 1.5 140
    DN65 70 2.0 160
    DN80 85 2.0 180
    DN100 104 2.0 200
    DN125 129 2.0 375
  • 7W-D
    Equal Tee DIN Fittings
    SIZE ØA Thickness L1 L
    DN10 12/13 1.5 26 52
    DN15 18/19 1.5 35 70
    DN20 22/23 1.5 40 80
    DN25 28/29 1.5 50 100
    DN32 34/35 1.5 55 110
    DN40 40/41 1.5 60 120
    DN50 52/53 1.5 70 140
    DN65 70 2.0 80 160
    DN80 85 2.0 90 180
    DN100 101.6
    104.0    		 2.0 150
    100    		 300
    200
    DN125 129 2.0 187.5 375
    DN150 154 2.0 225 450
    DN200 204 2.0 300 600
    DN250 254 2.0 300 600
    DN300 306 3.0 300 600
  • 7WS-D
    Pull Tee DIN Fittings
    SIZE ØA Thickness L1 L
    DN10 12/13 1.5 11.0 52
    DN15 18/19 1.5 11.0 70
    DN20 22/23 1.5 13.0 80
    DN25 28/29 1.5 16.0 100
    DN32 34/35 1.5 19.5 110
    DN40 40/41 1.5 23.0 120
    DN50 52/53 1.5 30.0 140
    DN65 70 2.0 40.0 160
    DN80 85 2.0 47.5 180
    DN100 101.6
    104.0    		 2.0 56.0
    58.0    		 300
    200
    DN125 129 2.0 74.0 375
    DN150 154 2.0 90.0 450
    DN200 204 2.0 115 600
    DN250 254 2.0 140 600
    DN300 306 3.0 166 600
  • 31W-D
    Concentric Reducer DIN Fittings
    SIZE(DN) ØA T ØB T L
    15x10 18/19 1.5 12/13 1.5 11
    20x10 22/23 1.5 12/13 1.5 18
    20x15 22/23 1.5 18/19 1.5 7
    25x15 28/29 1.5 18/19 1.5 18
    25x20 28/29 1.5 22/23 1.5 11
    32x20 34/35 1.5 22/23 1.5 22
    32x25 34/35 1.5 28/29 1.5 25
    40x20 40/41 1.5 22/23 1.5 33
    40x25 40/41 1.5 28/29 1.5 23
    40x32 40/41 1.5 34/35 1.5 23
    50x25 52/53 1.5 28/29 1.5 27
    50x32 52/53 1.5 34/35 1.5 28
    50x40 52/53 1.5 40/41 1.5 27
    65x25 70 2.0 28/29 1.5 35
    65x40 70 2.0 40/41 1.5 39
    65x50 70 2.0 52/53 1.5 29
    80x50 85 2.0 52/53 1.5 45
    80x65 85 2.0 70 2.0 33
    100x50 104 2.0 52/53 1.5 50
    100x65 104 2.0 70 2.0 44
    100x80 104 2.0 85 2.0 60
    125x80 129 2.0 85 2.0 79
    125x100 129 2.0 104 2.0 45
    150x100 154 2.0 104 2.0 90
    150x125 154 2.0 129 2.0 45
    200x150 204 2.0 154 2.0 90
  • 32W-D
    Eccentric Reducer DIN Fittings
    SIZE(DN) ØA T ØB T L
    32x25 34/35 1.5 28/29 1.5 16.5
    40x25 40/41 1.5 28/29 1.5 33.0
    40x32 40/41 1.5 34/35 1.5 16.5
    50x25 52/53 1.5 28/29 1.5 66.0
    50x32 52/53 1.5 34/35 1.5 49.5
    50x40 52/53 1.5 40/41 1.5 33.0
    65x40 70 2.0 40/41 1.5 77.0
    65x50 70 2.0 52/53 1.5 44.0
    80x50 85 2.0 52/53 1.5 85.0
    80x65 85 2.0 70 2.0 41.2
    100x50 104 2.0 52/53 1.5 137.5
    100x65 104 2.0 70 2.0 93.5
    100x80 104 2.0 85 2.0 52.5
  • 7RW-D
    Reducing Tee DIN Fittings
    SIZE(DN) ØA T ØB T L1 L
    15x10 18/19 1.5 12/13 1.5 29.0 70
    20x10 22/23 1.5 12/13 1.5 31.0 80
    20x15 22/23 1.5 18/19 1.5 37.0 80
    25x15 28/29 1.5 18/19 1.5 40.0 100
    25x20 28/29 1.5 22/23 1.5 43.0 100
    32x15 34/35 1.5 18/19 1.5 43.0 110
    32x20 34/35 1.5 22/23 1.5 46.0 110
    32x25 34/35 1.5 28/29 1.5 53.0 110
    40x20 40/41 1.5 22/23 1.5 49.0 120
    40x25 40/41 1.5 28/29 1.5 56.0 120
    40x32 40/41 1.5 34/35 1.5 58.0 120
    50x25 52/53 1.5 28/29 1.5 62.0 140
    50x32 52/53 1.5 34/35 1.5 64.0 140
    50x40 52/53 1.5 40/41 1.5 66.0 140
    65x32 70 2.0 34/35 1.5 72.5 160
    65x40 70 2.0 40/41 1.5 74.5 160
    65x50 70 2.0 52/53 1.5 78.5 160
    80x40 85 2.0 40/41 1.5 82.0 180
    80x50 85 2.0 52/53 1.5 86.0 180
    80x65 85 2.0 70 2.0 87.5 180
    100x50 104 2.0 52/53 1.5 95.5 200
    100x65 104 2.0 70 2.0 97.0 200
    100x80 104 2.0 85 2.0 99.5 200
    125x65 129 2.0 70 2.0 109.5 375
    125x80 129 2.0 85 2.0 112.0 375
    125x100 129 2.0 104 2.0 112.5 375
    150x80 154 2.0 85 2.0 124.5 450
    150x100 154 2.0 104 2.0 125.0 450
    150x125 154 2.0 129 2.0 200.0 450
    200x100 204 2.0 104 2.0 150.0 600
    200x125 204 2.0 129 2.0 225.0 600
    200x150 204 2.0 154 2.0 250.0 600
  • 7RWS-D
    Reducing Pull Tee DIN Fittings
    SIZE(DN) ØA T ØB T L1 L
    15x10 18/19 1.5 12/13 1.5 10.5 70
    20x10 22/23 1.5 12/13 1.5 12.5 80
    20x15 22/23 1.5 18/19 1.5 13.0 80
    25x15 28/29 1.5 18/19 1.5 16.0 100
    25x20 28/29 1.5 22/23 1.5 16.0 100
    32x15 34/35 1.5 18/19 1.5 19.0 110
    32x20 34/35 1.5 22/23 1.5 19.0 110
    32x25 34/35 1.5 28/29 1.5 19.0 110
    40x20 40/41 1.5 22/23 1.5 22.0 120
    40x25 40/41 1.5 28/29 1.5 22.0 120
    40x32 40/41 1.5 34/35 1.5 22.5 120
    50x25 52/53 1.5 28/29 1.5 28.0 140
    50x32 52/53 1.5 34/35 1.5 28.5 140
    50x40 52/53 1.5 40/41 1.5 29.0 140
    65x32 70 2.0 34/35 1.5 37.0 160
    65x40 70 2.0 40/41 1.5 37.5 160
    65x50 70 2.0 52/53 1.5 38.5 160
    80x40 85 2.0 40/41 1.5 45.0 180
    80x50 85 2.0 52/53 1.5 46.0 180
    80x65 85 2.0 70 2.0 47.5 180
    100x50 104 2.0 52/53 1.5 55.5 200
    100x65 104 2.0 70 2.0 57.0 200
    100x80 104 2.0 85 2.0 57.0 200
    125x65 129 2.0 70 2.0 69.5 375
    125x80 129 2.0 85 2.0 69.5 375
    125x100 129 2.0 104 2.0 70.5 375
    150x80 154 2.0 85 2.0 82.0 450
    150x100 154 2.0 104 2.0 83.0 450
    150x125 154 2.0 129 2.0 86.5 450
    200x100 204 2.0 104 2.0 108.0 600
    200x125 204 2.0 129 2.0 111.5 600
    200x150 204 2.0 154 2.0 115.0 600
