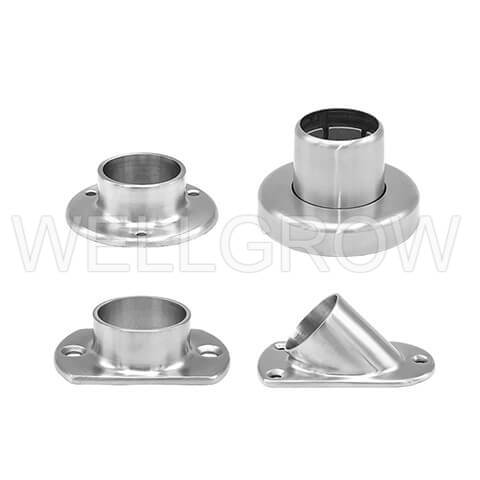

Base Flanges
Base Flanges
Handrail Fittings
Material： Stainless Steel 304, 316 (ASTM A351 CF8, CF8M)
Connection Type： Flush joint
Surface Finish： Satin finish, 180 grit polish, 320 grit polish, 400 grit polish, 600 grit polish (mirror finish)
Wall Thickness： 1.5mm, 2.0mm
Size： 1” ~ 3”
Available Parts：
Round Base Plate With Cover
Round Base Plate
Round Adjustable Heavy Duty Base Flange
Oblong Base Flange
Wall Stop Base Adjustable Angle 122°-135°
Round Base Plate / Flange
Round Base Plate / Flange

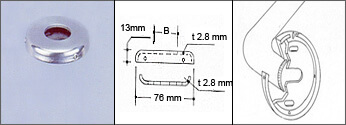

  • Round Base Plate With Cover Base Flanges
    Model No. B
    1068 1"
    1268 1-1/4"
    1568 1-1/2"
    2068 2"

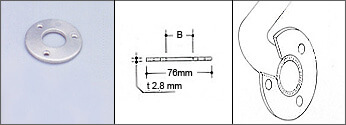

  • Round Base Plate Base Flanges
    Model No. B
    1069 1"
    1269 1-1/4"
    1569 1-1/2"

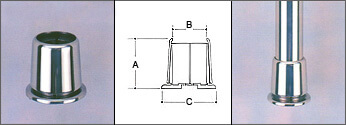

  • Round Adjustable Heavy Duty Base Flange Base Flanges
    Model No. B A C
    1099B-1" 1" 1-1/8" 1-5/8"
    1299B-1.25" 1-1/4" 1-1/2" 2"
    1599B-1.5" 1-1/2" 1-3/4" 2-1/4"
    2099B-2" 2" 2-7/8" 3"
    2599B-2.5" 2-1/2" 2" 3-3/4"

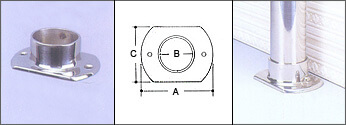

  • Oblong Base Flange Base Flanges
    Model No. B A C Height
    1514A 1-1/2" 3" 2-1/4" 1"
    2014A 2" 4" 2-3/4" 1-1/4"
    2514A 2-1/2" 5" 3-3/8" 1-1/2"

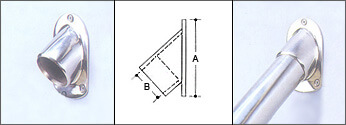

  • Wall Stop Base Adjustable Angle 122°-135° Base Flanges
    Model No. B A W
    1515A 1-1/2" 3-1/2" 2-1/4"
    2015A 2" 4-1/2" 2-3/4"
    2515A 1-1/2" 5" 3-1/4"

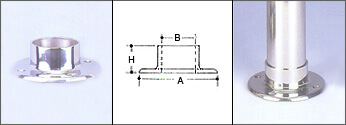

  • Round Base Plate / Flange Base Flanges
    Model No. B A H
    1516A 1-1/2" 3" 1"
    2016A 2" 4" 1-1/4"
    2516A 1-1/2" 5" 1-1/2"
    3016A 3" 6" 1-3/4"

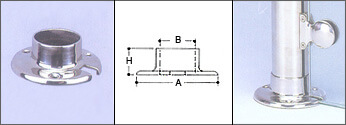

  • Round Base Plate / Flange Base Flanges
    Model No. B A H
    1517A 1-1/2" 3" 1"
    2017A 2" 4" 1-1/4"
    2517A 2-1/2" 5" 1-1/2"
    3017A 3" 6" 1-3/4"
