AS Weld Fittings by Wellgrow - High-Quality Stainless Steel Pipe Solution

AS Fittings

AS Weld Fittings

Stainless Sanitary Fittings

Material： 304, 316L

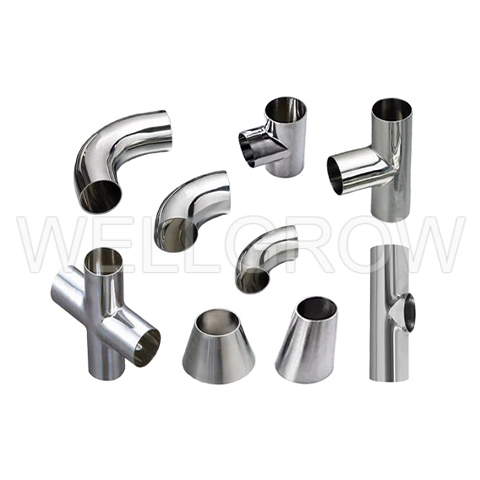

Available Parts：

2KS-A	45° Long Elbow
2WC-A	90° Short Elbow
2S-A	90° Long Elbow
7WWW-A	Short Equal Tee
7W-A	Long Equal Tee
9WWWW-A	Short Equal Cross

9W-A	Long Equal Cross
7WS-A	Equal Tee without Straight End
31W-A	Concentric Reducer
32W-A	Eccentric Reducer
7RW-A	Reducing Tee
7RWS-A	Reducing Pull Tee

2KS-A

45° Long Elbow

SIZE	ØA	Thickness	L
1/2”	12.7	1.6	37.91
3/4”	19.1	1.6	41.85
1"	25.4	1.6/2	45.78
1-1/4”	31.8	1.6/2	49.76
1-1/2"	38.1	1.6/2	53.61
2"	50.8	1.6/2	61.56
2-1/2"	63.5	1.6/2	69.35
3"	76.2	1.6/2	77.30
4"	101.6	1.6/2	93.13

2WC-A

90° Short Elbow

SIZE	ØA	Thickness	L
1/2”	12.7	1.6	19.1
3/4”	19.1	1.6	28.6
1”	25.4	1.6/2	38.1
1-1/4”	31.8	1.6/2	47.7
1-1/2"	38.1	1.6/2	57.0
2"	50.8	1.6/2	76.2
2-1/2"	63.5	1.6/2	95.0
3"	76.2	1.6/2	114.2
4"	101.6	1.6/2	152.4
6”	152.4	1.6/2	228.5

2S-A

90° Long Elbow

SIZE	ØA	Thickness	L
1/2”	12.7	1.6/2	49.1
3/4”	19.1	1.6/2	58.6
1"	25.4	1.6/2	68.1
1-1/4”	31.8	1.6/2	77.7
1-1/2"	38.1	1.6/2	87.0
2"	50.8	1.6/2	106.2
2-1/2"	63.5	1.6/2	125.0
3"	76.2	1.6/2	144.2
4"	101.6	1.6/2	182.4

7WWW-A

Short Equal Tee

SIZE	ØA	Thickness	L1	L
1/2”	12.7	1.6/2	19.1	38.2
3/4”	19.1	1.6/2	28.6	57.2
1"	25.4	1.6/2	38.1	76.2
1-1/4”	31.8	1.6/2	47.7	95.4
1-1/2'	38.1	1.6/2	57.0	114.0
2"	50.8	1.6/2	76.2	152.4
2-1/2"	63.5	1.6/2	95.0	190.0
3"	76.2	1.6/2	144.2	228.4
4"	101.6	1.6/2	152.4	304.8

7W-A

Long Equal Tee

SIZE	ØA	Thickness	L1	L
1/2"	12.7	1.6/2	49.1	98.2
3/4"	19.1	1.6/2	58.6	117.2
1"	25.4	1.6/2	68.1	136.2
1-1/4”	31.8	1.6/2	77.7	155.4
1-1/2"	38.1	1.6/2	87.0	174.0
2"	50.8	1.6/2	106.2	212.4
2-1/2"	63.5	1.6/2	125.0	250.0
3"	76.2	1.6/2	144.2	288.4
4"	101.6	1.6/2	182.4	364.8

9WWWW-A

Short Equal Cross

SIZE	ØA	Thickness	L
1/2”	12.7	1.6/2	38.2
3/4”	19.1	1.6/2	57.2
1"	25.4	1.6/2	76.2
1-1/4”	31.8	1.6/2	95.4
1-1/2"	38.1	1.6/2	114.0
2"	50.8	1.6/2	152.4
2-1/2"	63.5	1.6/2	190.0
3"	76.2	1.6/2	228.4
4"	101.6	1.6/2	304.8

9W-A

Long Equal Cross

SIZE	ØA	Thickness	L
1/2”	12.7	1.6/2	98.2
3/4”	19.1	1.6/2	117.2
1"	25.4	1.6/2	136.2
1-1/4”	31.8	1.6/2	155.4
1-1/2"	38.1	1.6/2	174.0
2"	50.8	1.6/2	212.4
2-1/2"	63.5	1.6/2	250.0
3"	76.2	1.6/2	288.4
4"	101.6	1.6/2	364.8

7WS-A

Equal Tee without Straight End

SIZE	ØA	Thickness	L1	L
1/2”	12.7	1.6/2	9.35	38.2
3/4”	19.1	1.6/2	12.55	57.2
1"	25.4	1.6/2	15.70	76.2
1-1/4”	31.8	1.6/2	18.90	95.4
1-1/2"	38.1	1.6/2	22.05	114.0
2"	50.8	1.6/2	28.40	152.4
2-1/2"	63.5	1.6/2	34.75	190.0
3"	76.2	1.6/2	41.10	228.4
4"	101.6	1.6/2	53.80	304.8

31W-A

Concentric Reducer

SIZE	ØA	T	ØB	T	L
3/4”x1/2”	19.1	1.6/2	12.7	1.6/2	19.1
1"x1/2"	25.4	1.6/2	12.7	1.6/2	25.4
1"x3/4"	25.4	1.6/2	19.1	1.6/2	25.4
1-1/4”x3/4”	31.8	1.6/2	19.1	1.6/2	31.8
1-1/4”x1”	31.8	1.6/2	25.4	1.6/2	31.8
1-1/2”x3/4”	38.1	1.6/2	19.1	1.6/2	38.1
1-1/2"x1"	38.1	1.6/2	25.4	1.6/2	38.1
1-1/2”x1-1/4”	38.1	1.6/2	31.8	1.6/2	38.1
2”x1/2”	50.8	1.6/2	12.7	1.6/2	50.8
2”x3/4”	50.8	1.6/2	19.1	1.6/2	50.8
2"x1"	50.8	1.6/2	25.4	1.6/2	50.8
2”x1-1/4”	50.8	1.6/2	31.8	1.6/2	50.8
2"x1-1/2"	50.8	1.6/2	38.1	1.6/2	50.8
2-1/2”x1”	63.5	1.6/2	25.4	1.6/2	63.5
2-1/2”x1-1/4”	63.5	1.6/2	31.8	1.6/2	63.5
2-1/2”x1-1/2"	63.5	1.6/2	38.1	1.6/2	63.5
2-1/2"x2"	63.5	1.6/2	50.8	1.6/2	63.5
3”x1”	76.2	1.6/2	25.4	1.6/2	76.2
3”x1-1/4”	76.2	1.6/2	31.8	1.6/2	76.2
3"x1-1/2"	76.2	1.6/2	38.1	1.6/2	76.2
3"x2"	76.2	1.6/2	50.8	1.6/2	76.2
3"x2-1/2"	76.2	1.6/2	63.5	1.6/2	76.2
4”x1”	101.6	1.6/2	25.4	1.6/2	101.6
4”x1-1/4”	101.6	1.6/2	31.8	1.6/2	101.6
4“x1-1/2”	101.6	1.6/2	38.1	1.6/2	101.6
4"x2"	101.6	1.6/2	50.8	1.6/2	101.6
4"x2-1/2"	101.6	1.6/2	63.5	1.6/2	101.6
4"x3"	101.6	1.6/2	76.2	1.6/2	101.6
5”x2”	127.0	1.6/2	50.8	1.6/2	127.0
5”x3”	127.0	1.6/2	76.2	1.6/2	127.0
5”x4”	127.0	1.6/2	101.6	1.6/2	127.0
6”x2”	152.4	1.6/2	50.8	1.6/2	152.4
6”x2-1/2”	152.4	1.6/2	63.5	1.6/2	152.4
6”x3”	152.4	1.6/2	76.2	1.6/2	152.4
6”x4”	152.4	1.6/2	101.6	1.6/2	152.4
6”x5”	152.4	1.6/2	127.0	1.6/2	152.4

32W-A

Eccentric Reducer

SIZE	ØA	T	ØB	T	L
3/4”x1/2”	19.1	1.6/2	12.7	1.6/2	19.1
1"x1/2"	25.4	1.6/2	12.7	1.6/2	25.4
1"x3/4"	25.4	1.6/2	19.1	1.6/2	25.4
1-1/4”x3/4”	31.8	1.6/2	19.1	1.6/2	31.8
1-1/4”x1”	31.8	1.6/2	25.4	1.6/2	31.8
1-1/2”x3/4”	38.1	1.6/2	19.1	1.6/2	38.1
1-1/2"x1"	38.1	1.6/2	25.4	1.6/2	38.1
1-1/2”x1-1/4”	38.1	1.6/2	31.8	1.6/2	38.1
2”x1/2”	50.8	1.6/2	12.7	1.6/2	50.8
2”x3/4”	50.8	1.6/2	19.1	1.6/2	50.8
2"x1"	50.8	1.6/2	25.4	1.6/2	50.8
2”x1-1/4”	50.8	1.6/2	31.8	1.6/2	50.8
2"x1-1/2"	50.8	1.6/2	38.1	1.6/2	50.8
2-1/2”x1”	63.5	1.6/2	25.4	1.6/2	63.5
2-1/2”x1-1/4”	63.5	1.6/2	31.8	1.6/2	63.5
2-1/2”x1-1/2"	63.5	1.6/2	38.1	1.6/2	63.5
2-1/2"x2"	63.5	1.6/2	50.8	1.6/2	63.5
3”x1”	76.2	1.6/2	25.4	1.6/2	76.2
3”x1-1/4”	76.2	1.6/2	31.8	1.6/2	76.2
3"x1-1/2"	76.2	1.6/2	38.1	1.6/2	76.2
3"x2"	76.2	1.6/2	50.8	1.6/2	76.2
3"x2-1/2"	76.2	1.6/2	63.5	1.6/2	76.2
4”x1”	101.6	1.6/2	25.4	1.6/2	101.6
4”x1-1/4”	101.6	1.6/2	31.8	1.6/2	101.6
4“x1-1/2”	101.6	1.6/2	38.1	1.6/2	101.6
4"x2"	101.6	1.6/2	50.8	1.6/2	101.6
4"x2-1/2"	101.6	1.6/2	63.5	1.6/2	101.6
4"x3"	101.6	1.6/2	76.2	1.6/2	101.6
5”x2”	127.0	1.6/2	50.8	1.6/2	127.0
5”x3”	127.0	1.6/2	76.2	1.6/2	127.0
5”x4”	127.0	1.6/2	101.6	1.6/2	127.0
6”x2”	152.4	1.6/2	50.8	1.6/2	152.4
6”x2-1/2”	152.4	1.6/2	63.5	1.6/2	152.4
6”x3”	152.4	1.6/2	76.2	1.6/2	152.4
6”x4”	152.4	1.6/2	101.6	1.6/2	152.4
6”x5”	152.4	1.6/2	127.0	1.6/2	152.4

7RW-A

Reducing Tee

SIZE	ØA	ØB	T	L1	L
1-1/2”x1"	38.1	25.4	1.6/2	80.0	160.0
2"x1"	50.8	25.4	1.6/2	80.0	160.0
2"x1-1/2"	50.8	38.1	1.6/2	80.0	160.0
2-1/2”x1-1/2”	63.5	38.1	1.6/2	80.0	160.0
2-1/2"x2"	63.5	50.8	1.6/2	80.0	160.0
3"x1-1/2"	76.2	38.1	1.6/2	80.0	160.0
3"x2"	76.2	50.8	1.6/2	80.0	160.0
3"x2-1/2"	76.2	63.5	1.6/2	95.3	190.5
4"x2"	101.6	50.8	1.6/2	80.0	160.0
4"x2-1/2"	101.6	63.5	1.6/2	95.3	190.5
4"x3"	101.6	76.2	1.6/2	114.3	228.6

7RWS-A

Reducing Pull Tee

SIZE	ØA	ØB	T	L1	L
1-1/2”x1"	38.1	25.4	1.6/2	22.05	160.0
2"x1"	50.8	25.4	1.6/2	28.40	160.0
2"x1-1/2"	50.8	38.1	1.6/2	28.40	160.0
2-1/2”x1-1/2”	63.5	38.1	1.6/2	34.75	160.0
2-1/2"x2"	63.5	50.8	1.6/2	37.75	160.0
3"x1-1/2"	76.2	38.1	1.6/2	41.10	160.0
3"x2"	76.2	50.8	1.6/2	41.10	160.0
3"x2-1/2"	76.2	63.5	1.6/2	41.10	190.5
4"x2"	101.6	50.8	1.6/2	53.80	160.0
4"x2-1/2"	101.6	63.5	1.6/2	53.80	190.5
4"x3"	101.6	76.2	1.6/2	53.80	228.6
