Adjustable Railing Brackets
Adjustable Railing Brackets
Handrail Fittings
Material： Stainless Steel 304, 316 (ASTM A351 CF8, CF8M)
Connection Type： Flush joint
Surface Finish： Satin finish, 180 grit polish, 320 grit polish, 400 grit polish, 600 grit polish (mirror finish)
Wall Thickness： 1.5mm, 2.0mm
Size： 1” ~ 3”

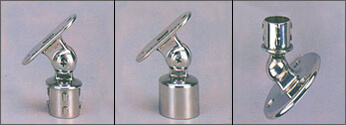

Available Parts：
Adj. Railing Bracket Radiused Internal Fit
Adj. Railing Bracket Radiused External Fit
Adj. Railing Bracket Round Base External Fit
Adj. Railing Bracket Flat Internal Fit
Adj. Railing Bracket Flat External Fit
Adj. Railing Bracket Round Base Internal Fit

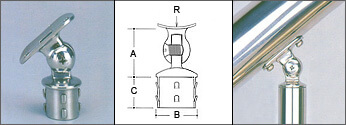

  • Adj. Railing Bracket Radiused Internal Fit Adjustable Railing Brackets
    Model No. B R A C
    315A-1"xR0.5" 1" 1-1/2" 1-1/2" 3/4"
    315A-1"xR2" 1" 2" 1-1/4" 3/4"
    315A-1.25"xR0.5" 1-1/4" 1-1/2" 1-1/4" 1"
    315A-1.25"xR2" 1-1/4" 2" 1-1/4" 1"
    315A-1.5"xR0.5" 1-1/2" 1-1/2" 1-3/4" 1/8"
    315A-1.5"xR2" 1-1/2" 2" 1-3/4" 1/8"
    315A-1.5"xR2.5" 1-1/2" 2-1/2" 1-3/4" 1/8"
    315A-2"xR2" 2" 2" 2" 1-1/2"
    315A-2"xR2.5" 2" 2-1/2" 2" 1-1/2"

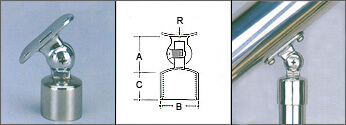

  • Adj. Railing Bracket Radiused External Fit Adjustable Railing Brackets
    Model No. B R A C
    316A-1"xR0.5" 1" 1-1/2" 1-1/4" 3/4"
    316A-1"xR2" 1" 2" 1-1/4" 3/4"
    316A-1.25"xR0.5" 1-1/4" 1-1/2" 1-1/4" 3/4"
    316A-1.25"xR2" 1-1/4" 2" 1-1/4" 3/4"
    316A-1.5"xR0.5" 1-1/2" 1-1/2" 1-1/2" 7/8"
    316A-1.5"xR2" 1-1/2" 2" 1-1/2" 7/8"
    316A-1.5"xR2.5" 1-1/2" 2-1/2" 1-1/2" 7/8"
    316A-2"xR2" 2" 2" 2" 1"
    316A-2"xR2.5" 2" 2-1/2" 2" 1"
    316A-2.5"xR3" 2-1/2" 3" 2-1/2" 1"

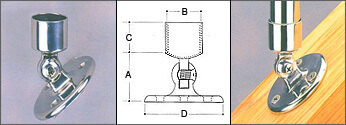

  • Adj. Railing Bracket Round Base External Fit Adjustable Railing Brackets
    Model No. B A C D
    316AC-1" 1" 1-1/4" 3/4" 2-3/8"
    316AC-1.25" 1-1/4" 1-3/8" 3/4" 2-1/2"
    316AC-1.5" 1-1/2" 1-1/2" 7/8" 3"
    316AC-2" 2" 2" 1" 4"
    316AC-2.5" 2-1/2" 2-1/2" 1" 5"
  • Adj. Railing Bracket Flat Internal Fit Adjustable Railing Brackets
    Model No. Size
    315AP Resemble to SS:315A
  • Adj. Railing Bracket Flat External Fit Adjustable Railing Brackets
    Model No. Size
    316AP Resemble to SS:316A
  • Adj. Railing Bracket Round Base Internal Fit Adjustable Railing Brackets
    Model No. Size
    315AC Resemble to SS:316AC
