3A Clamp Fittings
3A Clamp Fittings

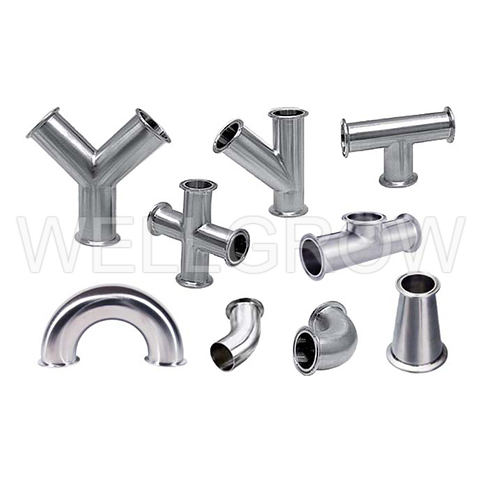

Stainless Sanitary Fittings
Material： 304, 316L
Available Parts：
2KMP 45° Elbow
L2KM 45° Elbow Clamp x Weld End
2CMP 90° Elbow
L2CMP 90° Long Elbow
L2CM 90° Elbow Clamp x Weld End
2CM 90° Short Elbow Clamp x Weld End
2WUMP 180° Return Bend
7MP Equal Tee
28AMP 45° Equal Lateral
28BMP 90° True WYE
9MP Equal Cross
3114AMP Concentric Reducer
3214AMP Eccentric Reducer
7RMP Reducing Tee
  • 2KMP
    45° Elbow 3A Clamp Fittings
    SIZE ØA ØB Thickness L
    1/2” 12.7 25.2 1.65 19.8
    35.5
    3/4” 19.05 25.2 1.65 24.6
    34.4
    1" 25.4 50.5 1.65 28.6
    1-1/2" 38.1 50.5 1.65 36.5
    2" 50.8 64.0 1.65 44.5
    2-1/2" 63.5 77.5 1.65 52.4
    3" 76.2 91.0 1.65 60.3
    4" 101.6 119.00 2.10 79.4
    5” 127.0 144.45 2.77 94.71
    6" 152.4 166.80 2.77 133.40
    8” 203.2 217.67 3.05 147.75
    10” 254.0 268.47 3.05 179.32
    12” 304.8 319.27 3.05 210.88
  • L2KM
    45° Elbow Clamp x Weld End 3A Clamp Fittings
    SIZE ØA ØB Thickness L1 L
    1" 50.5 25.4 1.65 45.9 30.2
    1-1/2" 50.5 38.1 1.65 54.0 41.3
    2" 64.0 50.8 1.65 71.4 58.7
    2-1/2" 77.5 63.5 1.65 88.9 76.2
    3" 91.0 76.2 1.65 106.4 93.7
    4" 119.0 101.6 1.65 138.1 122.2
  • 2CMP
    90° Elbow 3A Clamp Fittings
    SIZE ØA ØB T L
    1/2” 12.7 25.2 1.65 41.3
    3/4” 19.05 25.2 1.65 41.3
    1" 25.4 50.5 1.65 50.8
    1-1/2" 38.1 50.5 1.65 59.9
    2" 50.8 64.0 1.65 88.9
    2-1/2" 63.5 77.5 1.65 108.0
    3" 76.2 91.0 1.65 127.0
    4" 101.6 119.00 2.10 168.3
    5” 127.0 144.45 2.77 206.3
    6" 152.4 166.87 2.77 266.7
    8” 203.2 217.67 3.05 326.3
    10” 254.0 268.47 3.05 402.5
    12” 304.8 319.27 3.05 478.7
  • L2CMP
    90° Long Elbow 3A Clamp Fittings
    SIZE ØA ØB T L
    1/2” 12.7 25.2 1.65 57.7
    3/4” 19.05 25.2 1.65 72.7
    1" 25.4 50.5 1.65 65.1
    1-1/2" 38.1 50.5 1.65 87.3
    2" 50.8 64.0 1.65 115.9
    2-1/2" 63.5 77.5 1.65 144.5
    3" 76.2 91.0 1.65 173.0
    4" 101.6 119.00 2.10 226.9
    5” 127.0 144.45 2.77 269.8
    6" 152.4 166.87 2.77 313.6
    8” 203.2 217.67 3.05 389.8
    10” 254.0 268.47 3.05 478.7
    12” 304.8 319.27 3.05 554.9
  • L2CM
    90° Elbow Clamp x Weld End 3A Clamp Fittings
    SIZE ØA ØB T L1 L
    1" 25.4 50.5 1.65 52.4 65.1
    1-1/2" 38.1 50.5 1.65 74.6 87.3
    2" 50.8 64.0 1.65 103.2 115.9
    2-1/2" 63.5 77.5 1.65 131.8 144.5
    3" 76.2 91.0 1.65 160.3 173.0
    4" 101.6 119.0 2.10 211.1 227.0
  • 2CM
    90° Short Elbow Clamp x Weld End 3A Clamp Fittings
    SIZE ØA ØB T L1 L
    1" 25.4 50.5 1.65 38.1 50.8
    1-1/2" 38.1 50.5 1.65 57.2 69.9
    2" 50.8 64.0 1.65 76.2 88.9
    2-1/2" 63.5 77.5 1.65 95.3 108.0
    3" 76.2 91.0 1.65 114.3 127.0
    4" 101.6 119.0 2.10 152.4 168.3
  • 2WUMP
    180° Return Bend 3A Clamp Fittings
    SIZE ØA Thickness L
    3/4” 19.05 1.65 57.16
    1" 25.4 1.65 76.20
    1-1/2" 38.1 1.65 114.40
    2" 50.8 1.65 152.40
    2-1/2" 63.5 1.65 190.50
    3" 76.2 1.65 228.60
    4" 101.6 2.10 304.80
    6" 152.4 2.77 457.20
    8” 203.2 3.05 609.60
    10” 254.0 3.05 762.00
    12” 304.8 3.05 914.40
  • 7MP
    Equal Tee 3A Clamp Fittings
    SIZE ØA ØB T L1 L
    1/2” 12.7 25.4 1.65 41.3
    66.7    		 82.6
    133.4
    3/4” 19.05 25.4 1.65 41.3
    66.7    		 82.6
    133.4
    1" 25.4 50.5 1.65 60.3 120.6
    1-1/2' 38.1 50.5 1.65 70.0 140.0
    2" 50.8 64.0 1.65 88.9 177.8
    2-1/2" 63.5 77.5 1.65 88.9 177.8
    3" 76.2 91.0 1.65 95.3 190.6
    4" 101.6 119.0 2.10 114.4 228.8
    5” 127.0 166.8 2.77 158.7 317.4
    6” 152.4 167.0 2.77 165.1 330.2
    8” 203.2 217.7 3.05 199.3 398.6
    10” 254.0 268.0 3.05 237.4 474.8
    12” 304.8 319.0 3.05 275.5 551.0
  • 28AMP
    45° Equal Lateral 3A Clamp Fittings
    SIZE ØA ØB T L1 L
    1/2" 12.7 25.2 1.65 139.7 177.8
    3/4” 19.05 25.2 1.65 139.7 177.8
    1” 25.4 50.5 1.65 139.7 177.8
    1-1/2" 38.1 50.5 1.65 169.8 212.7
    2" 50.8 64.0 1.65 193.7 247.7
    2-1/2" 63.5 77.5 1.65 228.6 279.4
    3" 76.2 91.0 1.65 238.1 298.4
    4" 101.6 119.0 2.10 287.3 355.6
    6” 152.4 166.8 2.77 390.5 501.7
  • 28BMP
    90° True WYE 3A Clamp Fittings
    SIZE ØA ØB T L1 L
    1/2" 12.7 25.2 1.65 60.87 60.87
    3/4” 19.05 25.2 1.65 59.55 59.55
    1” 25.4 50.5 1.65 74.60 63.50
    1-1/2" 38.1 50.5 1.65 74.60 63.50
    2" 50.8 64.0 1.65 95.30 79.40
    2-1/2" 63.5 77.5 1.65 117.50 98.30
    3" 76.2 91.0 1.65 136.50 114.30
    4" 101.6 119.0 2.10 152.40 152.40
    6” 152.4 166.8 2.77 193.14 193.14
  • 9MP
    Equal Cross 3A Clamp Fittings
    SIZE ØA ØB T L1 L
    3/4” 19.05 25.4 1.65 41.3
    66.7    		 82.6
    133.4
    1" 25.4 50.5 1.65 60.3 120.6
    1-1/2” 38.1 50.5 1.65 70.0 140.0
    2" 50.8 64.0 1.65 88.9 177.8
    2-1/2" 63.5 77.5 1.65 88.9 177.8
    3" 76.2 91.0 1.65 95.3 190.6
    4" 101.6 119.0 2.10 114.4 228.8
  • 3114AMP
    Concentric Reducer 3A Clamp Fittings
    SIZE ØA T ØB T L
    3/4”x1/2” 19.05 1.65 12.7 1.65 50.8
    1”x1/2” 25.4 1.65 12.7 1.65 76.2
    1"x3/4" 25.4 1.65 19.05 1.65 50.8
    1-1/2”x1/2” 38.1 1.65 12.7 1.65 127.0
    1-1/2"x3/4" 38.1 1.65 19.05 1.65 101.6
    1-1/2"x1" 38.1 1.65 25.4 1.65 76.2
    2”x1/2” 50.8 1.65 12.7 1.65 177.8
    2”x3/4” 50.8 1.65 19.05 1.65 152.4
    2"x1" 50.8 1.65 25.4 1.65 127.0
    2"x1-1/2" 50.8 1.65 38.1 1.65 76.2
    2-1/2”x1” 63.5 1.65 25.4 1.65 177.8
    2-1/2"x1-1/2" 63.5 1.65 38.1 1.65 127.0
    2-1/2"x2" 63.5 1.65 50.8 1.65 76.2
    3”x1” 76.2 1.65 25.4 1.65 228.6
    3"x1-1/2" 76.2 1.65 38.1 1.65 177.8
    3"x2" 76.2 1.65 50.8 1.65 127.0
    3"x2-1/2" 76.2 1.65 63.5 1.65 76.2
    4”x1” 101.6 2.10 25.4 1.65 333.3
    4”x1-1/2” 101.6 2.10 38.1 1.65 282.5
    4"x2" 101.6 2.10 50.8 1.65 231.7
    4"x2-1/2" 101.6 2.10 63.5 1.65 181.0
    4"x3" 101.6 2.10 76.2 1.65 130.2
    6”x2” 152.4 2.77 50.8 1.65 173.9
    6”x2-1/2” 152.4 2.77 63.5 1.65 173.9
    6”x3” 152.4 2.77 76.2 1.65 173.9
    6"x4" 152.4 2.77 101.6 2.77 177.0
  • 3214AMP
    Eccentric Reducer 3A Clamp Fittings
    SIZE ØA T ØB T L
    3/4”x1/2” 19.05 1.65 12.7 1.65 50.8
    1”x1/2” 25.4 1.65 12.7 1.65 76.2
    1"x3/4" 25.4 1.65 19.05 1.65 50.8
    1-1/2”x1/2” 38.1 1.65 12.7 1.65 127.0
    1-1/2"x3/4" 38.1 1.65 19.05 1.65 101.6
    1-1/2"x1" 38.1 1.65 25.4 1.65 76.2
    2”x1/2” 50.8 1.65 12.7 1.65 177.8
    2”x3/4” 50.8 1.65 19.05 1.65 152.4
    2"x1" 50.8 1.65 25.4 1.65 127.0
    2"x1-1/2" 50.8 1.65 38.1 1.65 76.2
    2-1/2”x1” 63.5 1.65 25.4 1.65 177.8
    2-1/2"x1-1/2" 63.5 1.65 38.1 1.65 127.0
    2-1/2"x2" 63.5 1.65 50.8 1.65 76.2
    3”x1” 76.2 1.65 25.4 1.65 228.6
    3"x1-1/2" 76.2 1.65 38.1 1.65 177.8
    3"x2" 76.2 1.65 50.8 1.65 127.0
    3"x2-1/2" 76.2 1.65 63.5 1.65 76.2
    4”x1” 101.6 2.10 25.4 1.65 333.3
    4”x1-1/2” 101.6 2.10 38.1 1.65 282.5
    4"x2" 101.6 2.10 50.8 1.65 231.7
    4"x2-1/2" 101.6 2.10 63.5 1.65 181.0
    4"x3" 101.6 2.10 76.2 1.65 130.2
    6”x2” 152.4 2.77 50.8 1.65 173.9
    6”x2-1/2” 152.4 2.77 63.5 1.65 173.9
    6”x3” 152.4 2.77 76.2 1.65 173.9
    6"x4" 152.4 2.77 101.6 2.77 177.0
  • 7RMP
    Reducing Tee 3A Clamp Fittings
    SIZE ØA T ØB T L L1
    3/4”x1/2” 19.05 1.65 12.7 1.65 120.9 60.30
    1”x1/2” 25.4 1.65 12.7 1.65 120.6 60.20
    1"x3/4" 25.4 1.65 19.05 1.65 120.6 60.20
    1-1/2”x1/2” 38.1 1.65 12.7 1.65 139.8 66.80
    1-1/2"x3/4" 38.1 1.65 19.05 1.65 139.8 66.80
    1-1/2"x1" 38.1 1.65 25.4 1.65 139.8 66.80
    2”x1/2” 50.8 1.65 12.7 1.65 177.8 73.00
    2”x3/4” 50.8 1.65 19.05 1.65 177.8 73.00
    2"x1" 50.8 1.65 25.4 1.65 177.8 73.00
    2"x1-1/2" 50.8 1.65 38.1 1.65 177.8 76.20
    2-1/2”x1” 63.5 1.65 25.4 1.65 177.8 83.00
    2-1/2”x1-1/2” 63.5 1.65 38.1 1.65 177.8 83.00
    2-1/2"x2" 63.5 1.65 50.8 1.65 177.8 95.20
    3”x1” 76.2 1.65 25.4 1.65 190.6 90.50
    3"x1-1/2" 76.2 1.65 38.1 1.65 190.6 89.00
    3"x2" 76.2 1.65 50.8 1.65 190.6 101.60
    3"x2-1/2" 76.2 1.65 63.5 1.65 190.6 95.40
    4"x1" 101.6 2.10 25.4 1.65 228.4 104.78
    4”x1-1/2” 101.6 2.10 38.1 1.65 228.6 114.30
    4"x2" 101.6 2.10 50.8 1.65 228.6 114.30
    4"x2-1/2" 101.6 2.10 63.5 1.65 228.6 107.90
    4"x3" 101.6 2.10 76.2 1.65 228.6 107.90
    6”x2” 152.4 2.77 50.8 1.65 328.8 133.35
    6”x2-1/2” 152.4 2.77 63.5 1.65 328.8 133.35
    6”x3” 152.4 2.77 76.2 1.65 328.8 133.35
    6”x4” 152.4 2.77 101.6 2.10 328.8 133.60
